KRM 63/40

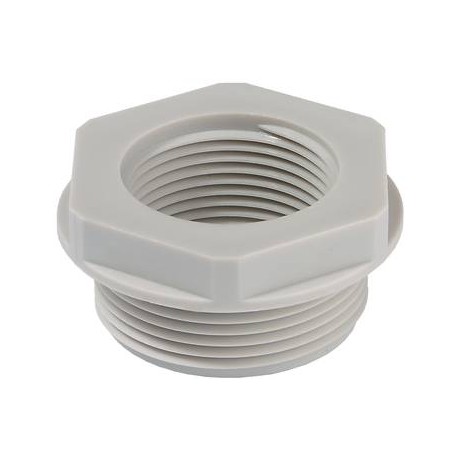

KRM 63/40 10063593 WISKA Light grey thread reducer RAL 7035, PA outer thread M63, interior M40
$0.00USD
3271 in stock
Key Specifications
Type (Features):KRM 63/40
Material (Features):Polyamide, fibre reinforced
Lead inner (Features):1,5
Lead outer (Features):1,5
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | KRM 63/40 |
| Material (Features) | Polyamide, fibre reinforced |
| Lead inner (Features) | 1,5 |
| Lead outer (Features) | 1,5 |
| Key width SW (Features) | 65 mm |
| Packing unit (Features) | 5 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 650 °C |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 22 mm |
| Ø inner thread (Features) | 40 |
| Ø outer thread (Features) | 63 |
| Thread type inner (Features) | M |
| Thread type outer (Features) | M |
| Order no. RAL 7035 (Features) | 10063593 |
| Collar diameter (E) (Features) | 73 mm |
| ETIM-Classification (Features) | EC000938 |
| Length screw-in thread L (Features) | 15 mm |
Product Description
Reduction adaptor, polyamide, RAL 7035, M63 / M40
