In Stock Hot Product
KRM 40/25

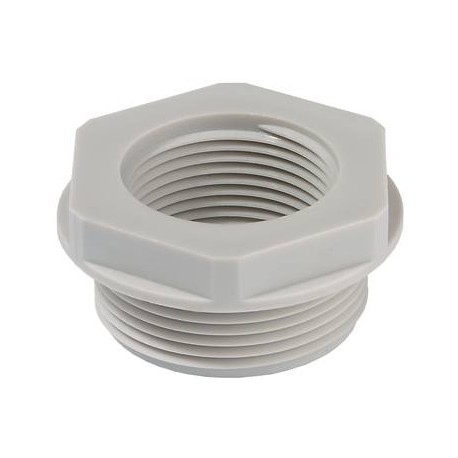

KRM 40/25 10063587 WISKA Light grey thread reducer RAL 7035, PA outer thread M16, interior M25
$0.00USD
3950 in stock
Key Specifications
Type (Features):KRM 40/25
Material (Features):Polyamide, fibre reinforced
Lead inner (Features):1,5
Lead outer (Features):1,5
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | KRM 40/25 |
| Material (Features) | Polyamide, fibre reinforced |
| Lead inner (Features) | 1,5 |
| Lead outer (Features) | 1,5 |
| Key width SW (Features) | 46 mm |
| Packing unit (Features) | 25 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 650 °C |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 19 mm |
| Ø inner thread (Features) | 25 |
| Ø outer thread (Features) | 40 |
| Thread type inner (Features) | M |
| Thread type outer (Features) | M |
| Order no. RAL 7035 (Features) | 10063587 |
| Collar diameter (E) (Features) | 51 mm |
| ETIM-Classification (Features) | EC000938 |
| Length screw-in thread L (Features) | 12 mm |
Product Description
Reduction adaptor, polyamide, RAL 7035, M40 / M25
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
