In Stock Hot Product
KP76

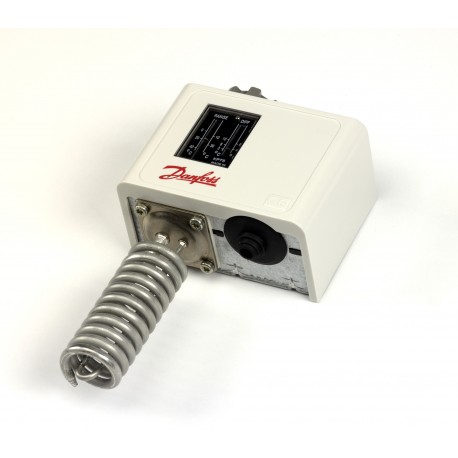

KP76 060L120066 DANFOSS REFRIGERATION Thermostat
$0.00USD
4093 in stock
Key Specifications
EAN ():5702423147380
Type ():KP76
Volume ():1.303 Liter
Approval ():CCCCEEACLLC CDC EURO-TYSKLVDPZHRINARMRSRoHS ChinaUKCAc UL us UL353, CS C22.2c UL us UL873, CS C22.2
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423147380 |
| Type () | KP76 |
| Volume () | 1.303 Liter |
| Approval () | CCCCEEACLLC CDC EURO-TYSKLVDPZHRINARMRSRoHS ChinaUKCAc UL us UL353, CS C22.2c UL us UL873, CS C22.2 |
| Equipment () | Top plate |
| Net weight () | 0.448 Kilogram |
| Charge type () | Vapour |
| Sensor type () | Room sensor |
| Serviceable () | No |
| CE evaluated () | Yes |
| Gross weight () | 0.512 Kilogram |
| UL evaluated () | Yes |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Packing format () | Multi pack |
| Parts included () | ScrewsWall bracket |
| Reset function () | Auto |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Contact function () | SPDT |
| SCIP dossier no. () | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| Differential type () | Adjustable |
| EU RoHS compliance () | Yes |
| UK RoHS compliance () | Yes |
| Enclosure rating IP () | IP30 |
| Product accessories () | Switches accessories |
| Product description () | Thermostat |
| China RoHS compliance () | Yes |
| Electrical connection () | Rubber cable gland |
| UL approval file name () | E31024MH27572 |
| EU RoHS exemption clause () | No |
| Product Name Description () | Thermostat |
| Electrical spec. standard () | EN 60947-5 |
| Enclosure rating Nema (~) () | 1 |
| SCIP dossier product name () | KP/KPI pressure switch |
| Sensor size (Ø x L) [in] () | 1 1/2 x 1 1/4 in |
| Sensor size (Ø x L) [mm] () | 25 x 78 mm |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 6-14 mm |
| Quantity per packing format () | 32 pc |
| Max. sensor temperature [°C] () | 120 °C |
| Max. sensor temperature [°F] () | 248 °F |
| Temperature range [°C] [max] () | 45 °C |
| Temperature range [°C] [min] () | 5 °C |
| Temperature range [°F] [max] () | 113 °F |
| Temperature range [°F] [min] () | 41 °F |
| EN 60947 electrical properties () | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Diff. @ Max. range setting [K] [max] () | 8 K |
| Diff. @ Max. range setting [K] [min] () | 2 K |
| Diff. @ Min. range setting [K] [max] () | 20 K |
| Diff. @ Min. range setting [K] [min] () | 5 K |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 150 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| Diff. @ Max. range setting[°C] [max] () | 8 °C |
| Diff. @ Max. range setting[°C] [min] () | 2 °C |
| Diff. @ Min. range setting[°C] [max] () | 20 °C |
| Diff. @ Min. range setting[°C] [min] () | 5 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Thermostat, KP76
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: 5 - 45, Reset function: Auto, Contact function: SPDT, Sensor type: Room sensor, Enclosure rating IP: IP30
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
