KEP 29/36

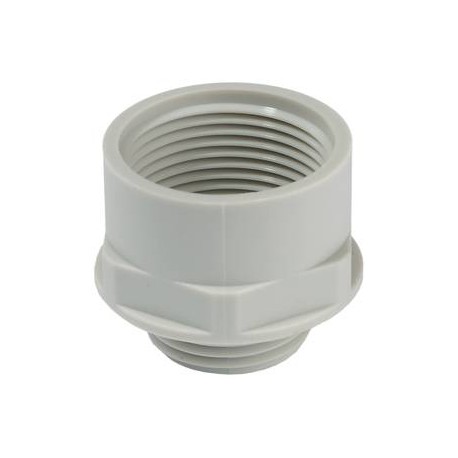

KEP 29/36 10063601 WISKA Light grey thread amplifier RAL 7035, PA outer thread Pg.29, interior Pg.36
$0.00USD
4117 in stock
Key Specifications
Type (Features):KEP 29/36
Material (Features):Polyamide, fibre reinforced
Key width SW (Features):53 mm
Packing unit (Features):20
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | KEP 29/36 |
| Material (Features) | Polyamide, fibre reinforced |
| Key width SW (Features) | 53 mm |
| Packing unit (Features) | 20 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 650 °C |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 30 mm |
| Ø inner thread (Features) | 36 |
| Ø outer thread (Features) | 29 |
| Thread type inner (Features) | PG |
| Thread type outer (Features) | PG |
| Order no. RAL 7035 (Features) | 10063601 |
| Collar diameter (E) (Features) | 59 mm |
| ETIM-Classification (Features) | EC000938 |
| Length internal thread (Features) | 15,5 mm |
| Length screw-in thread L (Features) | 12 mm |
Product Description
Enlargement adaptor, polyamide, RAL 7035, Pg29 / Pg36
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
