KDS10

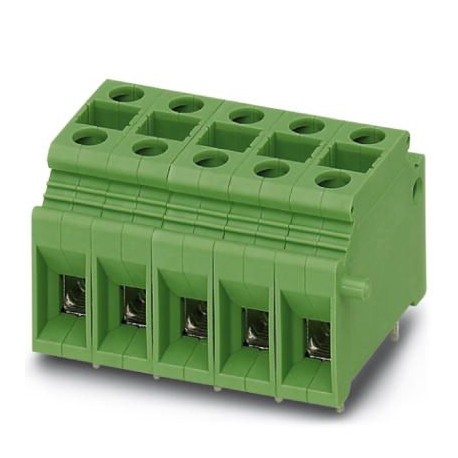

KDS10 1704020 PHOENIX CONTACT PCB terminal block
$4.31USD
2363 in stock
Key Specifications
GTIN:4017918023164
Orderkey:1704020
Catalog page:Page 457 (C-1-2013)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918023164 |
| Orderkey | 1704020 |
| Catalog page | Page 457 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| (Connection data) | CSA |
| Custom tariff number | 85369010 |
| Screw thread (Dimensions) | M4 |
| Pitch (Key Commercial Data) | 10 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 29 mm |
| Stripping length (Dimensions) | 12 mm |
| Range of articles (Dimensions) | KDS10 |
| Nominal current IN (Dimensions) | 76 A |
| Solder pin surface (Dimensions) | |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 1 |
| Maximum load current (Dimensions) | 76 A (with 16 mm² conductor cross section) |
| Rated voltage (II/2) (Dimensions) | 630 V |
| Width [ w ] (Key Commercial Data) | 10 mm |
| Height [ h ] (Key Commercial Data) | 33.3 mm |
| Length [ l ] (Key Commercial Data) | 36.8 mm |
| Nominal cross section (Dimensions) | 10 mm² |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Tightening torque max (Dimensions) | 1.5 Nm |
| Hole diameter (Key Commercial Data) | 1.4 mm |
| Tightening torque, min (Dimensions) | 1.2 Nm |
| Solder pin [P] (Key Commercial Data) | 4.3 mm |
| Weight per Piece (excluding packing) | 16.060 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Internal cylindrical gage (Dimensions) | B6 |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Conductor cross section AWG max. (General) | 6 |
| Conductor cross section AWG min. (General) | 20 |
| Conductor cross section solid max. (General) | 16 mm² |
| Conductor cross section solid min. (General) | 0.5 mm² |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Conductor cross section flexible max. (General) | 10 mm² |
| Conductor cross section flexible min. (General) | 0.5 mm² |
| Connection in acc. with standard (Connection data) | EN-VDE |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| 2 conductors with same cross section, solid max. (General) | 4 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded max. (General) | 4 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.5 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 320 V, nominal cross-section: 10 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1,
