KDS10 HOUSING

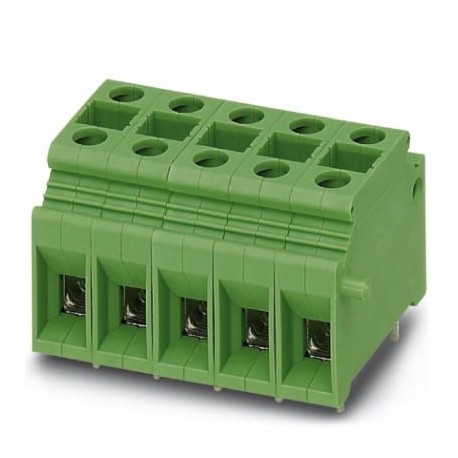

KDS10 HOUSING 1840857 PHOENIX CONTACT PCB terminal block
$0.00USD
3124 in stock
Key Specifications
GTIN:4046356909822
Orderkey:1840857
Packing unit:1
Custom tariff number:85472000
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356909822 |
| Orderkey | 1840857 |
| Packing unit | 1 |
| Custom tariff number | 85472000 |
| Screw thread (Dimensions) | M4 |
| Pitch (Key Commercial Data) | 10 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 29 mm |
| Stripping length (Dimensions) | 12 mm |
| Range of articles (Dimensions) | KDS10 |
| Nominal current IN (Dimensions) | 76 A |
| Number of positions (Dimensions) | 2 |
| Rated voltage (II/2) (Dimensions) | 630 V |
| Width [ w ] (Key Commercial Data) | 9.96 mm |
| Height [ h ] (Key Commercial Data) | 33.3 mm |
| Length [ l ] (Key Commercial Data) | 36.8 mm |
| Nominal cross section (Dimensions) | 10 mm² |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Tightening torque max (Dimensions) | 1.5 Nm |
| Hole diameter (Key Commercial Data) | 1.4 mm |
| Tightening torque, min (Dimensions) | 1.2 Nm |
| Solder pin [P] (Key Commercial Data) | 4.3 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Internal cylindrical gage (Dimensions) | B6 |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Conductor cross section AWG max. (General) | 6 |
| Conductor cross section AWG min. (General) | 20 |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Connection in acc. with standard (Connection data) | EN-VDE |
| 2 conductors with same cross section, solid max. (General) | 4 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded max. (General) | 4 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.5 mm² |
