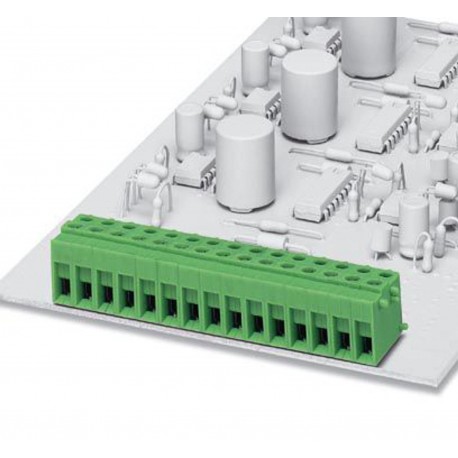

KDS BU 1701094 PHOENIX CONTACT PCB terminal block
$0.00USD
4573 in stock
Key Specifications
GTIN:4017918022976
Orderkey:1701094
Catalog page:Page 103 (CC-2007)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918022976 |
| Orderkey | 1701094 |
| Catalog page | Page 103 (CC-2007) |
| Packing unit | 50 pc |
| Country of origin | PL (Poland) |
| (Connection data) | CSA |
| Custom tariff number | 85369010 |
| Minimum order quantity | 50 pc |
| Screw thread (Dimensions) | M2,6 |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 14 mm |
| Stripping length (Dimensions) | 10 mm |
| Range of articles (Dimensions) | KDS |
| Nominal current IN (Dimensions) | 17.5 A |
| Solder pin surface (Dimensions) | |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 1 |
| Maximum load current (Dimensions) | 24 A (with a 2.5 mm² conductor cross section) |
| Rated voltage (II/2) (Dimensions) | 630 V |
| Length [ l ] (Key Commercial Data) | 18.6 mm |
| Nominal cross section (Dimensions) | 1.5 mm² |
| Rated voltage (III/2) (Dimensions) | 400 V |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Tightening torque max (Dimensions) | 0.5 Nm |
| Hole diameter (Key Commercial Data) | 1.4 mm |
| Tightening torque, min (Dimensions) | 0.4 Nm |
| Solder pin [P] (Key Commercial Data) | 4.9 mm |
| Weight per Piece (excluding packing) | 2.420 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Conductor cross section AWG max. (General) | 14 |
| Conductor cross section AWG min. (General) | 26 |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.14 mm² |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Conductor cross section flexible max. (General) | 1.5 mm² |
| Conductor cross section flexible min. (General) | 0.14 mm² |
| Connection in acc. with standard (Connection data) | EN-VDE |
| Flammability rating according to UL 94 (Dimensions) | V2 |
| Flammability rating according to UL 94 (Connection data) | V2 |
| 2 conductors with same cross section, solid max. (General) | 0.75 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.14 mm² |
| 2 conductors with same cross section, stranded max. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.14 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 1 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 1 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.25 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 17.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 1, number of rows: 1, number of poles per row:
