In Stock Hot Product

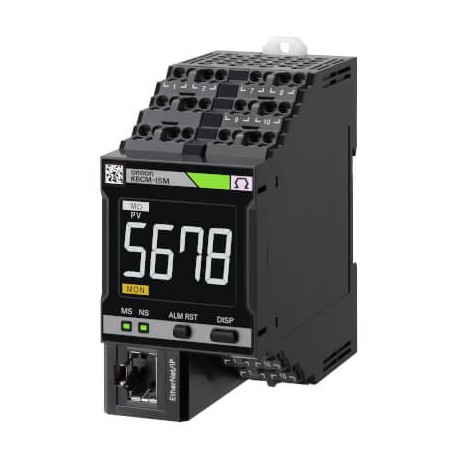

K6CM-ISMD-EIP
K6CM-ISMD-EIP K6CM0006B OMRON Motor Condition Monitoring, AC, 3-phase, Induction motor, Insulation resistanc..
$1,131.06USD
46 in stock
Key Specifications
():K6CM-ISZBI52
Application:Detection of poor insulation
Output type:NPN, Transistor
Setup method:Free software
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | K6CM-ISZBI52 |
| Application | Detection of poor insulation |
| Output type | NPN, Transistor |
| Setup method | Free software |
| User interface | Condition monitoring software tool, Front LED, LCD screen |
| Analysis method | Insulation resistance |
| Mounting method | DIN rail |
| Resistance range | 0-9.99 Mohm |
| Mounting position | Controller: panel, ZCT: panel (through hole 52 mm diameter) |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Applicable motor type | Three-phase induction motor (rated voltage 480VAC max), 0.75 - 7.5kW |
| Communication port(s) | EtherNet/IP |
| Product Depth (unpacked) | 91.9 mm |
| Product Width (unpacked) | 45 mm |
| Number of digital outputs | 3 |
| Product Height (unpacked) | 90 mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
