K3X185/5

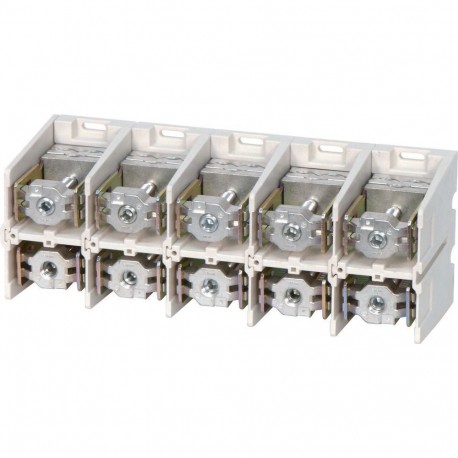

K3X185/5 070104 Y7-70104 EATON ELECTRIC Connection terminal, 800A, 5p, flat/round
$0.00USD
3135 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):125 mm
Width (EF000008):366 mm
Height (EF000040):140 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 125 mm |
| Width (EF000008) | 366 mm |
| Height (EF000040) | 140 mm |
| Contact safe (EF004521) | Yes |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Screw |
| Nominal current (EF000001) | 800 A |
| Number of poles (EF001391) | 5 |
| Number of inputs (EF000318) | 2 |
| Number of outputs (EF000319) | 3 |
| Suitable for solid conductors (EF007816) | No |
| Conductor cross section, input (EF016330) | 50 mm² |
| Conductor cross section, output (EF016331) | 50 mm² |
| Suitable for stranded conductors (EF007818) | Yes |
| Conductor cross section, input AWG (EF016332) | 1 |
| Conductor cross section, output AWG (EF016333) | 0 |
| Suitable for fine strand conductors (EF007804) | No |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
Product Description
Terminal connection, 800A, 5p, flat/round
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
