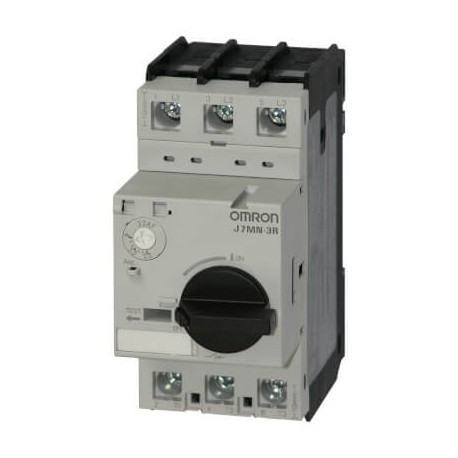

J7MN-3R-8
J7MN-3R-8 J7MN9078H 234300 OMRON 5 8 A / 3KW Swivel
$0.00USD
4657 in stock
Key Specifications
Depth:100 mm
Width:45 mm
Height:98 mm
Terminal:Screw
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth | 100 mm |
| Width | 45 mm |
| Height | 98 mm |
| Terminal | Screw |
| Control type | Rotary type |
| Rated current [A] | 8 A |
| Rated power AC2, AC3 at 400 V [kW] | 3 kW |
| Suitable for motors 3 ~ 400 V [kW] | 3 kW |
| Short-circuit breaking capacity at 3 ~ 400 V [kA] | 100 kA |
| Setting range thermal overload release current [A] | 5-8 A |
| Setting range instantaneous short-circuit release current [A] | 108-108 A |
Product Description
Motor-protective circuit breaker, rotary type, 3-pole, 5-8 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
