IZMX40H4-V32W-1

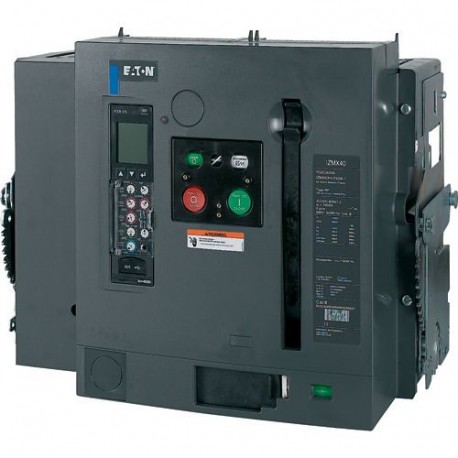

IZMX40H4-V32W-1 183808 Y7-183808 EATON ELECTRIC Circuit-breaker, 4 pole, 3200 A, 105 kA, Selective operation..
$0.00USD
4699 in stock
Key Specifications
Feature Name:Feature Value
Power loss (EF005387):560 W
Rated voltage (EF003977):690 V
Number of poles (EF001391):4
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Power loss (EF005387) | 560 W |
| Rated voltage (EF003977) | 690 V |
| Number of poles (EF001391) | 4 |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Motor drive optional (EF007386) | true |
| Motor drive integrated (EF006697) | false |
| Type of control element (EF006976) | Push button |
| Degree of protection (IP) (EF005474) | IP31 |
| Rated permanent current Iu (EF001389) | 3200 A |
| With switched-off indicator (EF007006) | true |
| Overload release current setting (EF002336) | 1280 A |
| Integrated earth fault protection (EF007296) | false |
| Complete device with protection unit (EF008906) | true |
| With integrated under voltage release (EF001390) | false |
| DIN rail (top hat rail) mounting optional (EF008904) | false |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | false |
| Type of electrical connection of main circuit (EF006819) | Rail connection |
| Position of connection for main current circuit (EF006671) | Back side |
| Adjustment range undelayed short-circuit release (EF007131) | 6400 A |
| Number of auxiliary contacts as change-over contact (EF003531) | 2 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1920 A |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 105 kA |
