In Stock Hot Product
IPD PL 3P2,5 M BK

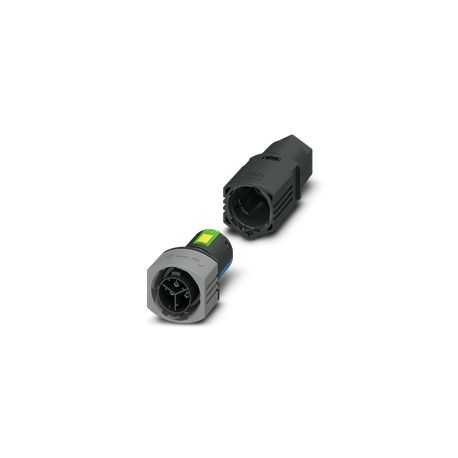

IPD PL 3P2,5 M BK 1088664 PHOENIX CONTACT Connector, product family: IPD, connection type: Push-lock connect..
$14.31USD
738 in stock
Key Specifications
:500 V DC
Width:26.5 mm
Height:26.9 mm
Length:85.9 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 500 V DC | |
| Width | 26.5 mm |
| Height | 26.9 mm |
| Length | 85.9 mm |
| Series | IPD |
| General | NOTE:Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Material | PA |
| Product type | Installation connector |
| Rated current | 20 A |
| Product family | IPD |
| Position marking | L, N, PE |
| Connection method | Push-lock connection |
| Connection profile | 2+PE |
| Nominal current IN | 20 A |
| Nominal voltage UN | 500 V AC |
| Degree of pollution | 3 |
| Number of positions | 3 |
| Degree of protection | IP66 |
| Overvoltage category | III |
| Connection technology | Push-lock connection |
| Rated voltage (III/3) | 500 V |
| External cable diameter () | 6 mm ... 9 mm |
| Resistance to UV radiation | yes |
| Rated surge voltage (III/3) | 6 kV |
| Connection cross section AWG | 20 ... 14 |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Ambient temperature (operation) | -30 °C ... 100 °C |
| Conductor cross section flexibel | 0.5 mm² ... 2.5 mm² |
| Number of connections per position | 1 |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -30 °C ... 100 °C |
Product Description
Connector, Push-in connection, number of poles: 2+PE, 1 mm² ... 2.5 mm², 500 V, 20 A, black, cable outer diameter: 6 mm ... 9 mm and 8 mm... 13 mm, Push-in connection
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
