IPCC 16- 4-MT

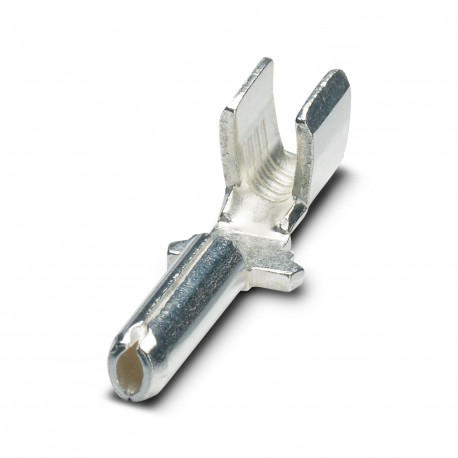

IPCC 16- 4-MT 1733385 PHOENIX CONTACT Single crimp pin contact for flexible cable with 4 mm² cross section.
$0.00USD
4979 in stock
Key Specifications
Pitch:0 mm
Series:VC-D
Product type:Crimp contact
Rated current:32 A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pitch | 0 mm |
| Series | VC-D |
| Product type | Crimp contact |
| Rated current | 32 A |
| Product family | IPCC 16-MT |
| Contact surface | Tin Sn |
| Article revision | 00 |
| Contact diameter | 3.4 mm |
| Connection method | Crimp connection |
| Dimensional drawing | |
| Maximum load current | 32 A |
| Connection technology | Crimp connection |
| Contact material type | rolled |
| Conductor cross section | 4 mm² |
| Contact connection type | Pin |
| Contact surface material | Tin |
| Insertion/withdrawal cycles | >= 25 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Metal surface contact area (top layer) | Tin Sn) |
| Stripping length of the individual wire | 8 mm |
