IPC 5/ 3-GU-7,62

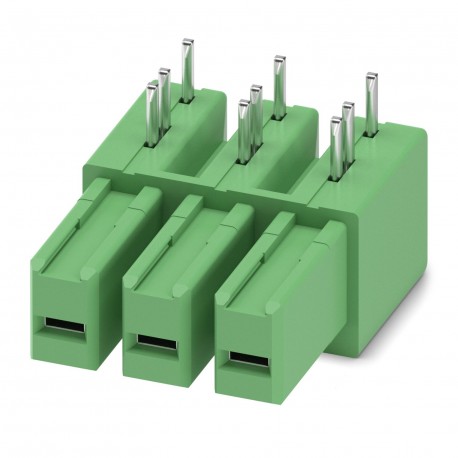

IPC 5/ 3-GU-7,62 1708611 PHOENIX CONTACT Printed-circuit board connector
$4.48USD
2270 in stock
Key Specifications
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Type:Inverted
Pitch:7.62 mm
Width [w]:22.86 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Type | Inverted |
| Pitch | 7.62 mm |
| Width [w] | 22.86 mm |
| Height [h] | 17.8 mm |
| Length [l] | 27.52 mm |
| Pin layout | Linear pinning |
| Pin spacing | 7.62 mm |
| Product line | COMBICON Connectors L |
| Product type | PCB headers |
| Hole diameter | 1.3 mm |
| Mounting type | Wave soldering |
| Specification | IEC 60664-1:2007-04 |
| Number of rows | 1 |
| Pin dimensions | 1.2 x 0.8 mm |
| Product family | IPC 5/..-GU |
| Color (Housing) | green (6021) |
| Mounting flange | without |
| Article revision | 05 |
| Contact material | Cu alloy |
| Installed height | 12.8 mm |
| Type of packaging | packed in cardboard |
| Nominal current IN | 41 A |
| Nominal voltage UN | 630 V |
| Notes on operation | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 3 |
| Number of potentials | 3 |
| Rated voltage (II/2) | 1000 V |
| Number of connections | 3 |
| Rated voltage (III/2) | 630 V |
| Rated voltage (III/3) | 630 V |
| Solder pin length [P] | 5 mm |
| Surface characteristics | hot-dip tin-plated |
| Insulating material group | I |
| Solder pins per potential | 3 |
| CTI according to IEC 60112 | 600 |
| Rated surge voltage (II/2) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (III/3) | 6 kV |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Rated insulation voltage (II/2) | 1000 V |
| Rated insulation voltage (III/2) | 630 V |
| Rated insulation voltage (III/3) | 630 V |
| minimum creepage distance (II/2) | 5.5 mm |
| minimum creepage distance (III/2) | 5.5 mm |
| minimum creepage distance (III/3) | 8 mm |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum clearance value - non-homogenous field (III/2) | 5.5 mm |
| minimum clearance value - non-homogenous field (III/3) | 5.5 mm |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Product Description
Printed circuit board base housing, nominal section: 6 mm², color: green, nominal current: 41 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Female, number of potentials: 3, nu
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
