IPC 16/ 8-GF-10,16

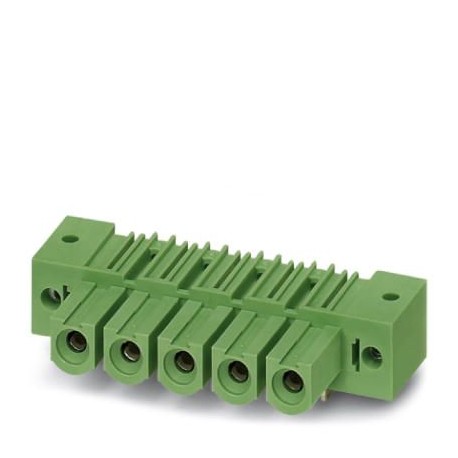

IPC 16/ 8-GF-10,16 1969674 PHOENIX CONTACT Feed-through header
$0.00USD
3633 in stock
Key Specifications
GTIN:4017918946876
Note:Made to Order (non-returnable)
Orderkey:1969674
Catalog page:Page 571 (C-1-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918946876 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1969674 |
| Catalog page | Page 571 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | PL (Poland) |
| Color (Dimensions) | green |
| Custom tariff number | 85366930 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 10.16 mm |
| Width (Key Commercial Data) | 99.04 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 13.6 mm |
| Length (Key Commercial Data) | 32.05 mm |
| Range of articles (Dimensions) | IPC 16/..-GF |
| Nominal current IN (Dimensions) | 76 A |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 8 |
| Dimension a (Key Commercial Data) | 71.12 mm |
| Maximum load current (Dimensions) | 76 A |
| Pin spacing (Key Commercial Data) | 10.16 mm |
| Rated voltage (II/2) (Dimensions) | 1000 V |
| Width [ w ] (Key Commercial Data) | 99.04 mm |
| Height [ h ] (Key Commercial Data) | 17.6 mm |
| Length [ l ] (Key Commercial Data) | 32.05 mm |
| Rated voltage (III/2) (Dimensions) | 1000 V |
| Rated voltage (III/3) (Dimensions) | 1000 V |
| Pin dimensions (Key Commercial Data) | 0.8 x 1.2 mm |
| Weight per Piece (excluding packing) | 31.130 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Rated surge voltage (II/2) (Dimensions) | 8 kV |
| Rated surge voltage (III/2) (Dimensions) | 8 kV |
| Rated surge voltage (III/3) (Dimensions) | 8 kV |
| Connection in acc. with standard (General) | CUL |
| Length of the solder pin (Key Commercial Data) | 4 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Printed circuit board base case, nominal section: 16 mm², color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Female, number of potentials: 8,
