IPC 16/ 4-ST-10,16

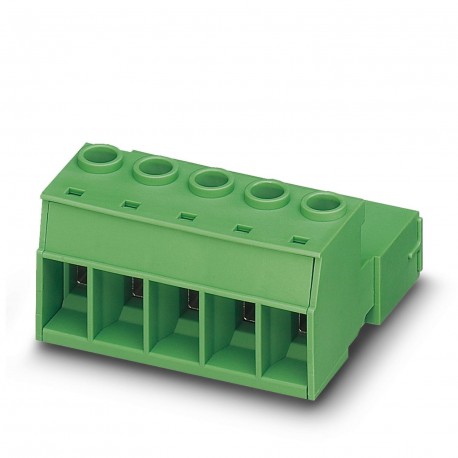

IPC 16/ 4-ST-10,16 1969399 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3322 in stock
Key Specifications
:0.75 mm² / flexible / > 30 N
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Type:Inverted
Pitch:10.16 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 0.75 mm² / flexible / > 30 N | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Type | Inverted |
| Pitch | 10.16 mm |
| Result | Test passed |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Frequency | 10 - 150 - 10 Hz |
| Width [w] | 43.68 mm |
| Height [h] | 27.8 mm |
| Length [l] | 44.1 mm |
| Sweep speed | 1 octave/min |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Locking type | without |
| Product line | COMBICON Connectors XL |
| Product type | PCB connector |
| No. of cycles | 50 |
| Specification | IEC 60999-1:1999-11 |
| Number of rows | 1 |
| Product family | IPC 16/..-ST |
| Thermal stress | 105 °C/168 h |
| Color (Housing) | green (6021) |
| Mounting flange | without |
| Test directions | X-, Y- and Z-axis |
| Article revision | 03 |
| Connector system | COMBICON PC 16 |
| Contact material | Cu alloy |
| Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Stripping length | 12 mm |
| Connection method | Screw connection with tension sleeve |
| Tightening torque | 1.7 Nm ... 1.8 Nm |
| Type of packaging | packed in cardboard |
| Contact resistance | 0.4 mΩ |
| Nominal current IN | 76 A |
| Nominal voltage UN | 1000 V |
| Notes on operation | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 4 |
| Number of potentials | 4 |
| Rated voltage (II/2) | 1000 V |
| Contact resistance R1 | 0.4 mΩ |
| Contact resistance R2 | 0.4 mΩ |
| Drive form screw head | Slotted (L) |
| Nominal cross section | 16 mm² |
| Number of connections | 4 |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 1000 V |
| Test duration per axis | 2.5 h |
| Contact connection type | Pin |
| Surface characteristics | completely silver-plated |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Rated surge voltage (II/2) | 6 kV |
| Tested number of positions | 9 |
| Conductor cross section AWG | 18 ... 6 |
| Insertion/withdrawal cycles | 50 |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (III/3) | 8 kV |
| Conductor cross section rigid | 0.75 mm² ... 16 mm² |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (dependent on the derating curve) |
| Rated insulation voltage (II/2) | 1000 V |
| Conductor cross section flexible | 0.75 mm² ... 16 mm² |
| Rated insulation voltage (III/2) | 1000 V |
| Rated insulation voltage (III/3) | 1000 V |
| minimum creepage distance (II/2) | 5.5 mm |
| Power-frequency withstand voltage | 4.26 kV |
| minimum creepage distance (III/2) | 8 mm |
| minimum creepage distance (III/3) | 12.5 mm |
| Conductor/PCB connection direction | 0 ° |
| Cylindrical gauge a x b / diameter | - / 5.4 mm |
| Withdraw strength per pos. approx. | 9 N |
| Insertion strength per pos. approx. | 8 N |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Impulse withstand voltage at sea level | 9.8 kV |
| Metal surface contact area (top layer) | Silver (4 - 8 µm Ag) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Metal surface terminal point (top layer) | Silver (4 - 8 µm Ag) |
| 2 conductors with same cross section, solid | 0.75 mm² ... 6 mm² |
| Insulation resistance, neighboring positions | > 5 MΩ |
| 2 conductors with same cross section, flexible | 0.75 mm² ... 6 mm² |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum clearance value - non-homogenous field (III/2) | 8 mm |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.5 mm² ... 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.75 mm² / solid / > 30 N |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 6 mm² |
Product Description
Connector for printed circuit board, nominal section: 16 mm², color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 4
