IOA FEED-THRU/EX

Parameter	Value
	Class I, Zone 2, IIC T4
Color	gray (RAL 7042)
Depth	72.9 mm
Width	10.3 mm
Height	64.2 mm
Altitude	< 2000 m
Certificate	CSANe 21ATEX4128X
Product type	Interface module
Inductance Li	0 mH
Set comprises	1433798 IOA FEED-THRU/EX/BULK PACK
Capacitance Ci	0 µF
Identification	 II 3G Ex nA IIC T4 Gc
Operating mode	100% operating factor
Product family	VIP I/O-Marshalling
Status display	no
No. of channels	1
Article revision	05
Input current Ii	1 A
Input voltage Ui	30 V
Pollution degree	2
Connection method	Pin strip
Mounting position	any
Nominal voltage UN	24 V DC
Number of positions	13
Degree of protection	IP20
Max. output power Po	Pi
Overvoltage category	II
Number of connections	1
Standards/regulations	IEC 60664
Max. output current Io	Ii
Max. output voltage Uo	Ui
Nominal supply voltage	24 V DC
Status display present	No
Continuous load current	1 A
Max. permissible current	1 A
Max. operating voltage Umax	30 V
Ambient temperature (operation)	-40 °C ... 75 °C
Permissible humidity (operation)	0 % ... 95 % (non-condensing)
Flammability rating according to UL 94	V0
Ambient temperature (storage/transport)	-40 °C ... 75 °C
Max. current carrying capacity per branch	1 A

Marshalling base element feed-through terminal block VIP I/O for field signal flow to or from the I/O system.

Technical specifications and performance data

Installation and operation guide

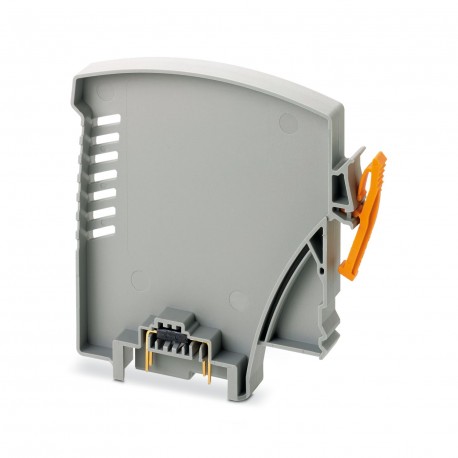

IOA FEED-THRU/EX 2906598 PHOENIX CONTACT Input/output module
