ILC 390 PN 2TX-IB

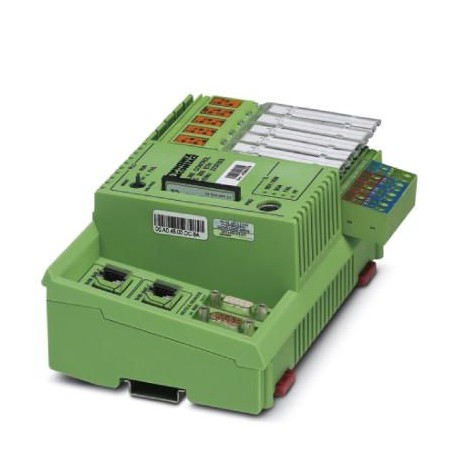

ILC 390 PN 2TX-IB 2985314 PHOENIX CONTACT Controller
$0.00USD
3343 in stock
Key Specifications
GTIN:4046356077705
Orderkey:2985314
Catalog page:Page 85 (C-6-2017)
Depth (Note):71.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356077705 |
| Orderkey | 2985314 |
| Catalog page | Page 85 (C-6-2017) |
| Depth (Note) | 71.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 182 mm |
| Height (Note) | 140.5 mm |
| Country of origin | DE (Germany) |
| Shock (Dimensions) | 25g, Criterion 1, according to IEC 60068-2-27 |
| Custom tariff number | 85371091 |
| Shock (General data) | 25g, Criterion 1, according to IEC 60068-2-27 |
| Input name (PROFINET) | Digital inputs |
| Weight (Power supply) | 440 g |
| Output name (PROFINET) | Digital outputs |
| Number (Fieldbus function) | 1 |
| (IEC 61131 runtime system) | max. 512 Bit (INTERBUS-Slave) |
| Number of inputs (PROFINET) | 12 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection method (PROFINET) | Spring-cage connection |
| Number of outputs (PROFINET) | 4 |
| Supply voltage (Direct I/Os) | 24 V DC ±5 % |
| Interface (Fieldbus function) | INTERBUS (Slave) |
| Mass storage (Control system) | 4 Mbyte |
| Processor (Mechanical design) | 624 MHz |
| Residual ripple (Direct I/Os) | ± 5 % |
| Update rate (Data interfaces) | min. 1 ms |
| Safety function (Power supply) | No |
| Power dissipation (Direct I/Os) | max. 6 W |
| Program memory (Control system) | typ. 2 Mbyte |
| Realtime clock (Control system) | Integrated (battery backup) |
| Specification (Data interfaces) | Version 1.1 |
| Connection technology (PROFINET) | 2, 3, 4-wire |
| Degree of protection (Dimensions) | IP20 |
| Device function (Data interfaces) | PROFINET-Controller |
| Engineering tool (Control system) | PC WORX |
| Diagnostics display (Power supply) | No |
| Supply voltage range (Direct I/Os) | 20.4 V DC ... 30 V DC |
| Vibration (operation) (Dimensions) | 5g, accordance to IEC 60068-2-6 |
| Description of the input (PROFINET) | Eight fast inputs, interrupt input |
| Controller redundancy (Power supply) | No |
| Vibration (operation) (General data) | 5g, accordance to IEC 60068-2-6 |
| Weight per Piece (excluding packing) | 777.700 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (2000 m above sea level) |
| Connection method (Fieldbus function) | D-SUB-9 female/D-SUB-9 male |
| Diagnostics tool (Ambient conditions) | DIAG+ from version 1.14 |
| Engineering tool (Ambient conditions) | PC WORX |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Transmission speed (Fieldbus function) | 500 kBaud / 2 MBaud (can be switched) |
| Retentive mass storage (Control system) | 96 kByte (NVRAM) |
| Number of control tasks (Control system) | 16 |
| Typical current consumption (Direct I/Os) | 250 mA (no local bus device connected during idling, bus inactive) |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Vibration (storage/transport) (General data) | 5g, 10 Hz ... 150 Hz, in accordance with IEC 60068-2-6 |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Maximum output current per channel (PROFINET) | 500 mA |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | 1 |
| Amount of process data (IEC 61131 runtime system) | max. 8192 Bit (INTERBUS-Master) |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C |
| Programming languages supported (Ambient conditions) | Programming in acc. with IEC 61131-3 |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Number of supported devices (IEC 61131 runtime system) | max. 512 (in total, of which 254 are remote bus devices/bus segments) |
| Number of devices with parameter channel (IEC 61131 runtime system) | max. 62 |
| Number of local bus devices that can be connected (IEC 61131 runtime system) | max. 63 (observe current consumption) |
| Number of supported branch terminals with remote bus branch (IEC 61131 runtime system) | max. 15 |
Product Description
Inline controller with PROFINET interfaces for coupling to other controls or systems, and possibility of programming according to IEC 61131-3, complete with connector and marking surface.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
