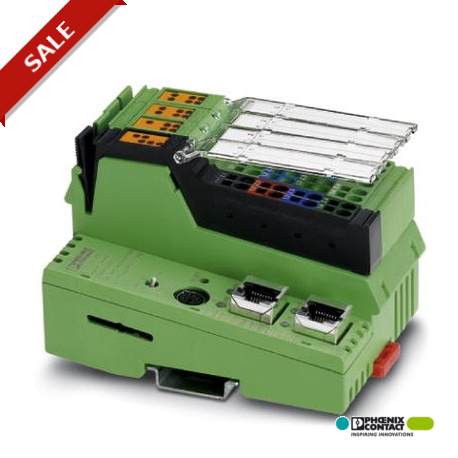

ILC 191 ETH 2TX
ILC 191 ETH 2TX 2700976 PHOENIX CONTACT The Inline controller offers the option of communicating via PROFINE..
$0.00USD
4488 in stock
Key Specifications
:max. 32768 Bit (internal Modbus Client)
Depth:71.5 mm
Shock:25g, Criterion 1, according to IEC 60068-2-27
Width:80 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| max. 32768 Bit (internal Modbus Client) | |
| Depth | 71.5 mm |
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Width | 80 mm |
| Height | 119.8 mm |
| Weight | 285 g |
| Interface | INTERBUS local bus (master) |
| Input name | Digital inputs |
| Output name | Digital outputs |
| Mass storage | 1 Mbyte |
| Program memory | 1 Mbyte (86 K instructions (IL)) |
| Realtime clock | Yes |
| Supply voltage | 24 V DC |
| Device function | PROFINET device |
| Residual ripple | ± 5 % |
| Diagnostics tool | DIAG+ |
| Number of inputs | 8 |
| Programming tool | PC WORX / PC WORX EXPRESS |
| Connection method | Inline data jumper |
| Number of outputs | 4 |
| Power dissipation | max. 5 W |
| Configuration tool | Config+ Version 1.01 or later |
| Transmission speed | 500 kBaud / 2 MBaud (can be switched) |
| Diagnostics display | No |
| Degree of protection | IP20 |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Without analog input | yes |
| Controller redundancy | No |
| Vibration (operation) | 5g |
| Without analog output | yes |
| Without counter input | yes |
| Amount of process data | max. 4096 Bit (INTERBUS) |
| Retentive mass storage | 48 kByte (NVRAM) |
| Number of control tasks | 8 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Description of the input | EN 61131-2 type 1 NPN/PNP |
| Max. current consumption | 870 mA (370 mA communications power + 500 mA analog voltage supply) |
| Number of supported devices | max. 128 |
| Typical current consumption | 210 mA |
| Without pulse direction output | yes |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Maximum output current per channel | 500 mA |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Number of devices with parameter channel | max. 24 |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Number of supported branch terminals with remote bus branch | max. 3 |
Product Description
The Inline controller offers the possibility of communicating via PROFINET and Modbus/TCP. Programming is done with PC Worx Express or PC Worx (IEC 61131-3).
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The ILC 191 ETH 2TX modular small-scale controller for the Inline I/O system is at the heart of Easy Automation. The ILC 1X1 series is characterized by its support for the Modbus/TCP and PROFINET Ethernet-based protocols. A new feature is the support for an optional SD card.
