ILC 131 ETH/XC

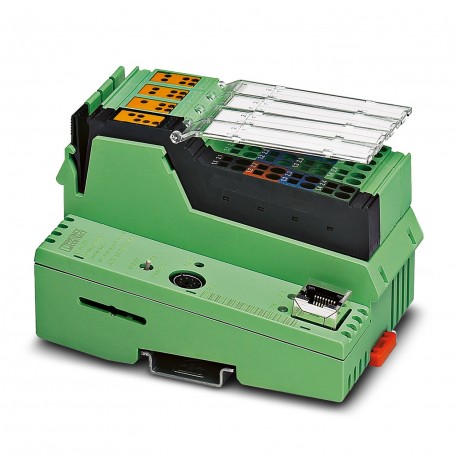

ILC 131 ETH/XC 2701034 PHOENIX CONTACT Controller
$0.00USD
3624 in stock
Key Specifications
:Symbolic flowchart (SFC)
Type:modular
Color:green (RAL 6021)
Depth:71.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Symbolic flowchart (SFC) | |
| Type | modular |
| Color | green (RAL 6021) |
| Depth | 71.5 mm |
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Width | 80 mm |
| Height | 119.8 mm |
| Device ID | 007Dhex/ 125dez |
| Processor | AlteraNios® II 64 MHz |
| Vendor ID | 00B0hex/ 176dez |
| Bus system | RJ45 |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Input name | Digital inputs |
| Web server | yes |
| Output name | Digital outputs |
| Cable length | max. 30 m |
| Current draw | 80 mA (without connected I/O terminal blocks) |
| Product type | Controller |
| Mounting type | DIN rail mounting |
| Specification | 2.2 |
| Product family | Inline-Controller |
| Program memory | 192 kByte |
| Realtime clock | yes |
| Runtime system | eCLR |
| Supply voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Clock frequency | 64 MHz |
| Device function | PROFINET device |
| No. of channels | 1 |
| Safety function | no |
| Article revision | 13 |
| Diagnostics tool | DIAG+ |
| Engineering tool | PC Worx |
| Number of inputs | 8 |
| Connection method | Inline potential distributor |
| Input filter time | typ. 5 ms (Signal change 01) |
| Number of outputs | 4 |
| Configuration tool | Config+ Version 1.01 or later |
| Nominal load, lamp | 12 W |
| Transmission speed | 10/100 Mbps |
| Data storage system | 192 kByte |
| Diagnostics display | no |
| Input voltage range | -0.5 V ... 30 V |
| Nominal load, ohmic | 12 W |
| Transmission medium | Copper |
| Degree of protection | IP20 |
| Number of interfaces | 1 |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Transmission physics | Copper |
| Application interface | OPC |
| Connection technology | 2-, 3-, 4-conductor |
| Controller redundancy | no |
| Vibration (operation) | 5g |
| Amount of process data | max. 4096 bit (INTERBUS) |
| Retentive data storage | 8 kByte (NVRAM) |
| Number of control tasks | 8 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Description of the input | EN 61131-2 type 1 NPN/PNP |
| Description realtime clock | not integrated |
| Conductor cross section AWG | 28 ... 16 |
| Number of supported devices | max. 63 |
| Nominal input current at UIN | typ. 7 mA |
| Number of Modbus/TCP clients | max. 4 later than FW 4.42 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Input voltage range "0" signal | -0.5 V ... 5 V |
| Input voltage range "1" signal | 15 V ... 30 V |
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Conformance with EMC directives | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD)EN 61000-4-2/IEC 61000-4-2 Criterion B, ±6 kV contact discharge, ±8 kV air discharge |
| Programming languages supported | Instruction list (IL) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Behavior with inductive overload | Output can be destroyed |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Maximum output current per channel | 500 mA |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Number of devices with parameter channel | max. 8 |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Maximum output current per module / terminal block | 2 A |
| Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO2) 10 ±0.3 ppm (test duration: 10 days), hydrogen sulfide (H2S) 1 ±0.3 ppm (test duration: 4 days), both at 25°C and with 75% humidity |
Product Description
Inline controller for use in severe environmental conditions, with Ethernet interface for coupling to other controls or systems, and possibility of programming according to IEC 61131-3, complete with
