ILB IB 24 DI32

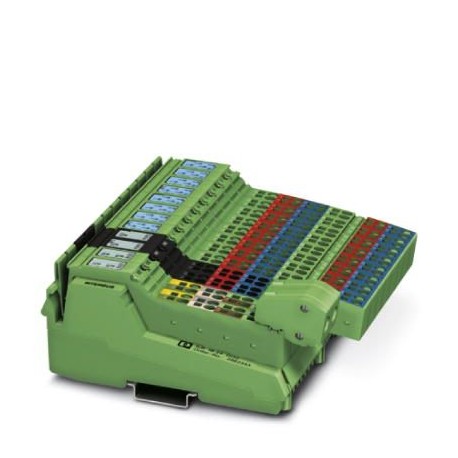

ILB IB 24 DI32 2862343 PHOENIX CONTACT I/O module
$0.00USD
4463 in stock
Key Specifications
GTIN:4017918923839
Orderkey:2862343
Catalog page:Page 188 (C-6-2017)
Depth (Note):57 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918923839 |
| Orderkey | 2862343 |
| Catalog page | Page 188 (C-6-2017) |
| Depth (Note) | 57 mm |
| Packing unit | 1 pc |
| Width (Note) | 156 mm |
| Height (Note) | 141 mm |
| Caption (Note) | The figure shows the general dimensional drawing of the Inline Block IO product family |
| (Digital inputs) | Incoming remote bus / outgoing remote bus 500 V AC 50 Hz 1 min. |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389091 |
| Designation (General) | INTERBUS |
| (Electrical isolation) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 25g |
| Input name (Interfaces) | Digital inputs |
| Note on dimensions (Note) | Specfications with connectors |
| Dimensional drawing (Note) | |
| Input voltage (Interfaces) | 24 V DC |
| Connection method (General) | Inline shield connector |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Transmission speed (General) | 500 kbps |
| Number of inputs (Interfaces) | 32 |
| Test section (Digital inputs) | I/Os / incoming remote bus 500 V AC 50 Hz 1 min. |
| Connection method (Interfaces) | Spring-cage connection |
| Net weight (Ambient conditions) | 405 g |
| Type of protection (Interfaces) | Short-circuit protection, overload protection of the sensor supply |
| Degree of protection (Dimensions) | IP20 |
| Connection technology (Interfaces) | 3-wire |
| Mounting type (Ambient conditions) | DIN rail |
| Typical response time (Interfaces) | approx. 500 µs |
| Weight per Piece (excluding packing) | 405.000 g |
| Air pressure (operation) (Dimensions) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Description of the input (Interfaces) | EN 61131-2 type 1 |
| Noise emission (Electrical isolation) | Class B (residential) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Mechanical tests (Electrical isolation) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Protection class (Electrical isolation) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Nominal input current at UIN (Interfaces) | 5 mA |
| Input voltage range "0" signal (Interfaces) | -30 V DC ... 5 V DC |
| Input voltage range "1" signal (Interfaces) | 15 V DC ... 30 V DC |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C |
| Air pressure (storage/transport) (Dimensions) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Permissible humidity (operation) (Dimensions) | max. 85 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | 1 |
| Note on weight specifications (Ambient conditions) | with connectors |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 95 % (non-condensing) |
| Connection in acc. with standard (Electrical isolation) | CUL |
Product Description
Inline, Block IO, INTERBUS, Inline shielded connector, Digital inputs: 32, 24 V DC, connection technology: 3 conductors, protection index: IP20, including Inline connectors and fields
