IL CO BK-PAC

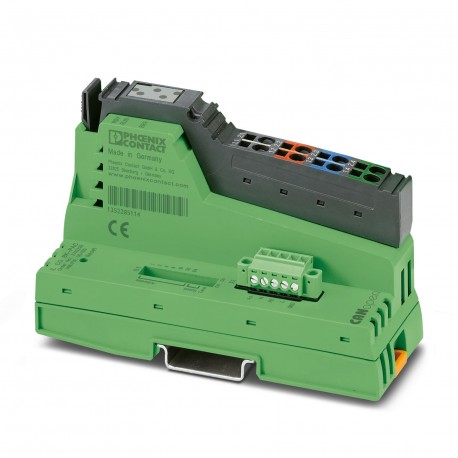

IL CO BK-PAC 2702230 PHOENIX CONTACT Bus coupler
$0.00USD
3569 in stock
Key Specifications
GTIN:4055626134949
Orderkey:2702230
Catalog page:Page 130 (C-6-2017)
Depth (Note):71.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626134949 |
| Orderkey | 2702230 |
| Catalog page | Page 130 (C-6-2017) |
| Depth (Note) | 71.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 40 mm |
| Height (Note) | 119.4 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85176200 |
| (Ambient conditions) | Faulty Inline cycles Message about the emergency object |
| Designation (General) | Inline local bus |
| Designation (Interfaces) | CANopen® |
| No. of channels (General) | 1 |
| Note on dimensions (Note) | Housing dimensions |
| Dimensional drawing (Note) | |
| Connection method (General) | Inline data jumper |
| Device profile (Interfaces) | CiA 401 V3.0 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Transmission speed (General) | 500 kbps / 2 Mbps (automatic detection, no combined system) |
| Number of positions (General) | 5 |
| Net weight (Ambient conditions) | 168.5 g |
| Degree of protection (Dimensions) | IP20 |
| Mounting type (Ambient conditions) | DIN rail |
| (System limits of the bus coupler) | max. 0.9 A (with max. number of connected I/O terminal blocks) |
| Amount of process data (Interfaces) | max. 512 Byte (Sum of the inputs and outputs for 64 PDOs with 8 bytes each) |
| Protection class (Inline potentials) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Weight per Piece (excluding packing) | 168.500 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Number of supported devices (Interfaces) | max. 63 (per station) |
| Diagnostics messages (Ambient conditions) | CRC error Message about the emergency object |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Utilization restriction (Key Commercial Data) | 1 |
| Designation (System limits of the bus coupler) | Segment circuit supply (US) |
| Supply voltage (System limits of the bus coupler) | 24 V DC |
| Note on weight specifications (Ambient conditions) | with connectors |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Power consumption (System limits of the bus coupler) | typ. 1.3 W (entire device) |
| Power supply unit (System limits of the bus coupler) | max. 8 A DC (sum of UM+ US) |
| Number of devices with parameter channel (Interfaces) | max. 16 |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Current consumption (System limits of the bus coupler) | typ. 51 mA (No local bus devices connected) |
| Supply voltage range (System limits of the bus coupler) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Number of local bus devices that can be connected (Interfaces) | max. 63 |
| Number of supported branch terminals with remote bus branch (Interfaces) | 0 |
Product Description
Inline, Bus coupler, CANopen®, MINI COMBICON, transmission rate on local bus:500 kBit/s / 2 MBit/s, protection index: IP20, including mains connector, inline connector and marking surface
