IDP29DB7S0000

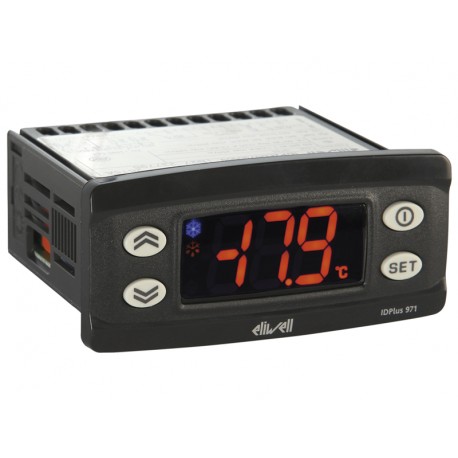

IDP29DB7S0000 ELIWELL IDPLUS 971 230V2 PROBES 2 RELAYS (VENT. OR DEFROST)
$0.00USD
3113 in stock
Key Specifications
(CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT):IDPLUS974
D. I (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT):If
HACCP (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT):If
Model (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT):IDPLUS 971
Supplier Information
ELIWELL
Products: 982
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | IDPLUS974 |
| D. I (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | If |
| HACCP (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | If |
| Model (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | IDPLUS 971 |
| Power (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 230V~ ±10% 50/60Hz12V~/c ▒ 10% 50/60Hz |
| Format (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | Panel 74x32 |
| Probes (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 2 NTC, PTC, PT1000 |
| Relays (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 2 |
| Display (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | with decimal point * 3 digits + sign |
| Copy Card (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | If |
| Reference (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | IDP29DB7S0000 |
| Dimensions (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 74 x 32 x 59 mm |
| Consumption (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 3W max |
| USB Unicard (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | If |
| Connectivity (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | Port TTL for connection to Unicard/ Copy Card or to system monitoring TelevisSystem/ModBus* (need Bus Adapter) |
| Analog inputs (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 2 PTC / NTC / Pt1000* |
| Digital Input (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | If |
| Display field (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | probe NTC: -50,0...110,0°Cprobe PTC: -55,0...140,0°Cprobe Pt1000: -55,0...150,0°C |
| Supply voltage (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 230VAC |
| Digital outputs (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 1 SPDT ½Hp 8(4)A 250V~ N. A.1 SPST 2Hp 12(12)A 250V~1 SPST 5(2)A 250V~ |
| Field measurement (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | -55,0...150,0°C |
| Individual Packing (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | If |
| Configurable inputs (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) | 1 digital (SELV) / analogue (PTC/NTC/Pt1000)*1 digital (SELV) / serial TTL* |
| * selectable by parameter (CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The family IDPLUS is especially suitable for stockists, since due toyourversatility allows you to reduce the number of codescovering the maximum of possibilities.
