ICS20-F45S-7035

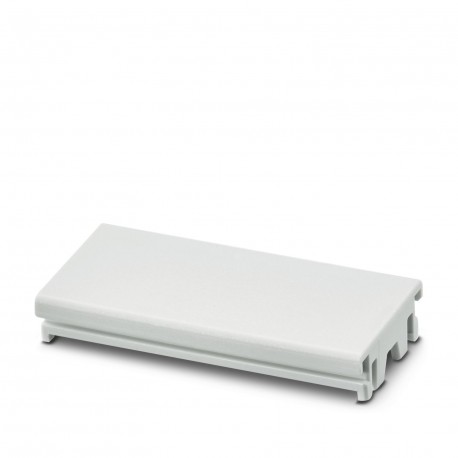

ICS20-F45S-7035 2203889 PHOENIX CONTACT Connection plate
$0.00USD
3878 in stock
Key Specifications
Type:ICS filler, closed
Depth:44.9 mm
Force:20 N
Width:20 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | ICS filler, closed |
| Depth | 44.9 mm |
| Force | 20 N |
| Width | 20 mm |
| Height | 7.25 mm |
| Result | Test passed |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Frequency | 10 - 150 - 10 Hz |
| Pulse shape | Half-sine |
| Sweep speed | 1 octave/min |
| Temperature | 850 °C |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Housing type | DIN rail housing |
| Product type | Connection plate |
| Assembly note | Refer to the data sheet for the range in the download area. |
| Mounting type | Slot |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Specification | IEC 60068-2-6:2007-12 |
| Test duration | 1 h |
| Height of fall | 50 cm |
| Housing series | ICS |
| Product family | ICS20 |
| Shock duration | 11 ms |
| Color (Housing) | light gray (RAL 7035) |
| Test directions | X-, Y- and Z-axis |
| Article revision | 00 |
| Housing material | Polyamide |
| Time of exposure | 30 s |
| Type of PCB mount | Slot |
| Dimensional drawing | |
| Outer packaging type | Resealable bag |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Number of PCB holders | 2 |
| Max. IP code to attain | IP20 |
| Test duration per axis | 2.5 h |
| Surface characteristics | untreated |
| CTI according to IEC 60112 | 600 |
| Ventilation openings present | no |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Number of shocks per direction | 3 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
Product Description
Rail box, ICS plug, closed, width: 20 mm, height: 7.25 mm, depth: 44.9 mm, colour: light grey (7035)
