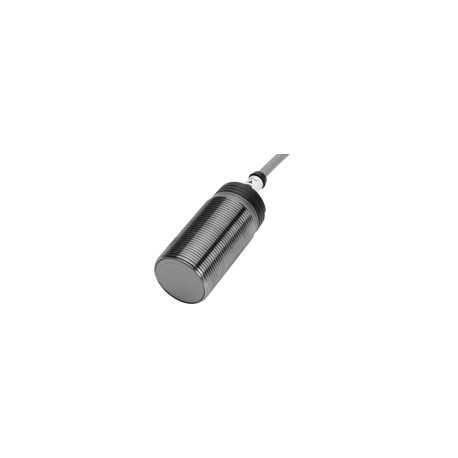

ICB30LF10PC

PICBr,oMx30imity Inductive SensorsStandard Range, Nickel-Plated Brass HousingTypes ICB, M30• Sensing distance: 10 to 15 mm• Flush or non-flush types• Short or long body versions• Rated operational voltage (Ub): 10 - 36 VDC• Output: DC 200 mA, NPN or PNP• Normally open or Normally closed• LED indication for output ON• Protection: reverse polarity, short circuit, transients• Cable or M12 plug versions• According to IEC 60947-5-2• CSA certified for Hazardous LocationsProduct DescriptionOrdering KeyICB30SF10NOM1A familyofinductiveprox- imity switches inindustri- al standard nickel-plated brass housings. They are able tohandle applications where high sensing range is requested.Output is open collectorNPN or PNP transistors.TypeHousing style Housing material Housing size Housing length Detection principle Sensing distance Output typeOutput configurationConnectionType SelectionConnec- Body RatedOrdering no.Ordering no. Ordering no.Ordering no. tionstyleoperatingNPN,PNP, NPN,PNP,distance Sn Normally openNormally openNormally closed Normally closedCableShort 10 mm 1) ICB30SF10NOICB30SF10PO ICB30SF10NCICB30SF10PC CableShort 15 mm 2) ICB30SN15NOICB30SN15PO ICB30SN15NCICB30SN15PC PlugShort 10 mm 1) ICB30SF10NOM1ICB30SF10POM1ICB30SF10NCM1ICB30SF10PCM1PlugShort 15 mm 2) ICB30SN15NOM1ICB30SN15POM1ICB30SN15NCM1ICB30SN15PCM1CableLong10 mm 1) ICB30LF10NOICB30LF10POICB30LF10NCICB30LF10PC CableLong15 mm 2) ICB30LN15NOICB30LN15POICB30LN15NCICB30LN15PC PlugLong10 mm 1) ICB30LF10NOM1 ICB30LF10POM1ICB30LF10NCM1 ICB30LF10PCM1PlugLong15 mm 2) ICB30LN15NOM1ICB30LN15POM1ICB30LN15NCM1ICB30LN15PCM11) For flush mounting in metal2) For non-flush mounting in metalSpecificationsRated operational voltage (Ub)10 to 36 VDC (ripple incl.)Ripple ≤ 10%Output current (Ie) ≤ 200 mA @ 50°C(≤ 150 mA @ 50-70°C)OFF-state current (Ir)≤ 50 μANo load supply current (Io) ≤ 15 mAVoltage drop (Ud)Max. 2.5 VDC @ 200 mAProtectionReverse polarity,short-circuit, transientsVoltage transient 1 kV/0.5 J Power ON delay (tv)300 ms Operating frequency (f)≤ 1000 HzIndication for output ONActivated LED, yellowNO versionTarget presentNC versionTarget not presentIndication for short circuit/overload LED blinking (f = 2 Hz)Assured operatingsensing distance (Sa)0 ≤ Sa ≤ 0.81 x SnEffective operatingdistance (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating distance (Su) 0.85 x Sr ≤ Su ≤ 1.1 x SrRepeat accuracy (R) ≤ 5%Differential travel (H)(Hysteresis) 1 to 20% of sensing dist.Ambient temperatureOperating-25° to +70°C (-13° to +158°F) Storage -30° to +80°C (-22° to +176°F)Shock and vibration IEC 60947-5-2/7.4Housing materialBody Nickel-plated brassFront capGrey thermoplastic polyesterSpecifications are subject to change without notice (18.11.2014)1
