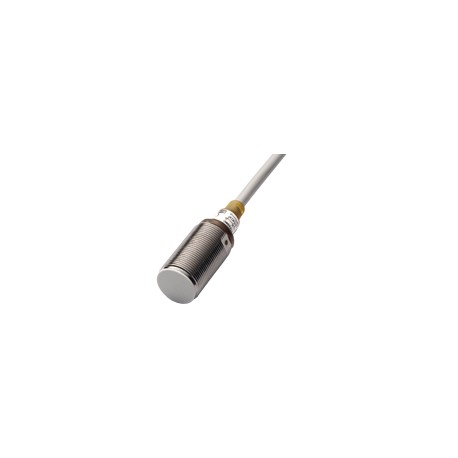

ICB18SF05PC

Proximity Inductive SensorsStandard range, Nickel-Plated Brass HousingTypes ICB, M18• Sensing distance: 5 to 8 mm• Flush and non-flush types• Short and long body versions• Rated operational voltage (Ub): 10 - 36 VDC• Output: DC 200 mA, NPN or PNP• Normally open, Normally closed• LED indication for output ON• Protection: reverse polarity, short circuit, transients• Cable and M12 plug versions• According to IEC 60947-5-2• Higher resistance to magnetic field• CSA certified for Hazardous LocationsProduct DescriptionOrdering KeyICB18SF05NOM1A family of inductive proxim- ity switches in industrial standard nickel-plated brass housings.They are able to handle applications where high sensing range is requested.Type SelectionOutput is open collectorNPN or PNP transistors.TypeHousing style Housing material Housing size Housing length Detection principle Sensing distance Output typeOutput configurationConnectionConnec-BodyRated Ordering no. Ordering no. Ordering no.Ordering no. tionstyle operating NPN PNP NPNPNPdistance SnNormally openNormally openNormally closedNormally closedCable Short5 mm 1)ICB 18 SF 05 NO ICB 18 SF 05 PO ICB 18 SF 05 NCICB 18 SF 05 PC Cable Short8 mm 2)ICB 18 SN 08 NOICB 18 SN 08 POICB 18 SN 08 NC ICB 18 SN 08 PC PlugShort5 mm 1)ICB 18 SF 05 NOM1ICB 18 SF 05 POM1ICB 18 SF 05 NCM1 ICB 18 SF 05 PCM1PlugShort8 mm 2)ICB 18 SN 08 NOM1 ICB 18 SN 08 POM1 ICB 18 SN 08 NCM1ICB 18 SN 08 PCM1Cable Long 5 mm 1)ICB 18 LF 05 NO ICB 18 LF 05 PO ICB 18 LF 05 NCICB 18 LF 05 PC Cable Long 8 mm 2)ICB 18 LN 08 NOICB 18 LN 08 POICB 18 LN 08 NC ICB 18 LN 08 PC PlugLong 5 mm 1)ICB 18 LF 05 NOM1ICB 18 LF 05 POM1ICB 18 LF 05 NCM1 ICB 18 LF 05 PCM1PlugLong 8 mm 2)ICB 18 LN 08 NOM1 ICB 18 LN 08 POM1 ICB 18 LN 08 NCM1ICB 18 LN 08 PCM11) For flush mounting in metal 2) For non-flush mounting in metalSpecificationsRated operational voltage (Ub)10 to 36 VDC (ripple incl.)Ripple ≤ 10%Output current (Ie)≤ 200 mA @ 50°C(≤ 150 mA @ 50-70°C)OFF-state current (Ir)≤ 50 µANo load supply current (IO) ≤ 15 mAVoltage drop (Ud) Max. 2.5 VDC @ 200 mAProtectionReverse polarity,short-circuit, transientsDielectric impulse voltagewithstand 1 kV/0.5 JPower ON delay (tv)300 msOperating frequency (f) ≤ 1500 HzIndication for output ONActivated LED, yellowNO versionTarget presentNC versionTarget not presentIndication for short circuit/overload LED blinkingAssured operatingsensing distance (Sa) 0 ≤ Sa ≤ 0.81 x SnEffective operatingdistance (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating distance (Su) 0.9 x Sr ≤ Su ≤ 1.1 x SrRepeat accuracy (R) ≤ 10%Differential travel (H)(Hysteresis) 1 to 20% of sensing dist.Ambient temperatureOperating-25° to +70°C (-13° to +158°F) Storage -30° to +80°C (-22° to +176°F)Shock and vibration IEC 60947-5-2/7.4Housing materialBody Nickel-plated brassFront Grey thermoplastic polyesterSpecifications are subject to change without notice (04.12.14) 1
