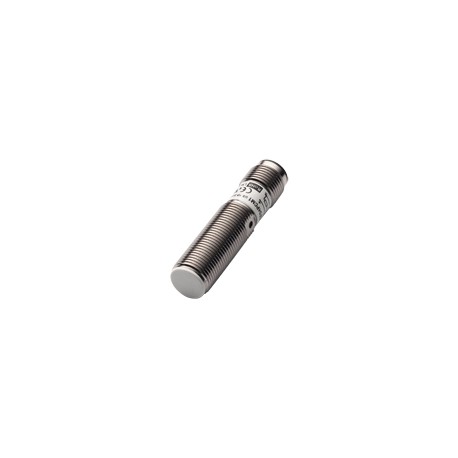

Proximity Inductive SensorsExtended Range, Nickel-Plated Brass HousingTypes ICB, M12• Sensing distance: 4 to 8 mm• Flush and non-flush types• Short and long body versions• Rated operational voltage (Ub): 10 - 36 VDC• Output: DC 200 mA, NPN or PNP• Normally open, Normally closed• LED indication for output ON• Protection: reverse polarity, short circuit, transients• Cable and M12 plug versions• According to IEC 60947-5-2• CSA certified for Hazardous LocationsProduct DescriptionOrdering KeyICB12SF04NOM1A family of inductive proxim- ity switches in industrial standard nickel-plated brass housings.They are able to handle applications whereType Selectionhigh sensing range is requested.Output is open collectorNPN or PNP transistors.TypeHousing style Housing material Housing size Housing length Detection principle Sensing distance Output typeOutput configurationConnectionConnec-BodyRated Ordering no. Ordering no. Ordering no.Ordering no. tionstyle operating NPN PNP NPNPNPdistance SnNormally openNormally openNormally closedNormally closedCable Short4 mm 1)ICB 12 SF 04 NO ICB 12 SF 04 PO ICB 12 SF 04 NCICB 12 SF 04 PC Cable Short8 mm 2)ICB 12 SN 08 NOICB 12 SN 08 POICB 12 SN 08 NC ICB 12 SN 08 PC PlugShort4 mm 1)ICB 12 SF 04 NOM1ICB 12 SF 04 POM1ICB 12 SF 04 NCM1 ICB 12 SF 04 PCM1PlugShort8 mm 2)ICB 12 SN 08 NOM1 ICB 12 SN 08 POM1 ICB 12 SN 08 NCM1ICB 12 SN 08 PCM1Cable Long 4 mm 1)ICB 12 LF 04 NO ICB 12 LF 04 PO ICB 12 LF 04 NCICB 12 LF 04 PC Cable Long 8 mm 2)ICB 12 LN 08 NOICB 12 LN 08 POICB 12 LN 08 NC ICB 12 LN 08 PC PlugLong 4 mm 1)ICB 12 LF 04 NOM1ICB 12 LF 04 POM1ICB 12 LF 04 NCM1 ICB 12 LF 04 PCM1PlugLong 8 mm 2)ICB 12 LN 08 NOM1 ICB 12 LN 08 POM1 ICB 12 LN 08 NCM1ICB 12 LN 08 PCM11) For flush mounting in metal 2) For non-flush mounting in metalSpecificationsRated operational voltage (Ub)10 to 36 VDC (ripple incl.)Ripple ≤ 10%Output current (Ie)≤ 200 mA @ 50°C(≤ 150 mA @ 50-70°C)OFF-state current (Ir)≤ 50 µANo load supply current (IO) ≤ 15 mAVoltage drop (Ud) Max. 2.5 VDC @ 200 mAProtectionReverse polarity,short-circuit, transientsVoltage transient 1 kV/0.5 J Power ON delay (tv)300 ms Operating frequency (f) ≤ 2000 HzIndication for output ONActivated LED, yellowNO versionTarget presentNC versionTarget not presentIndication for short circuit/overload LED blinkingAssured operatingsensing distance (Sa) 0 ≤ Sa ≤ 0.81 x SnEffective operatingdistance (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating distance (Su) 0.9 x Sr ≤ Su ≤ 1.1 x SrRepeat accuracy (R) ≤ 10%Differential travel (H)(Hysteresis) 1 to 20% of sensing dist.Ambient temperatureOperating-25° to +70°C (-13° to +158°F) Storage -30° to +80°C (-22° to +176°F)Shock and vibration IEC 60947-5-2/7.4Housing materialBody Nickel-plated brassFront Grey thermoplastic polyesterSpecifications are subject to change without notice (04.12.14) 1
