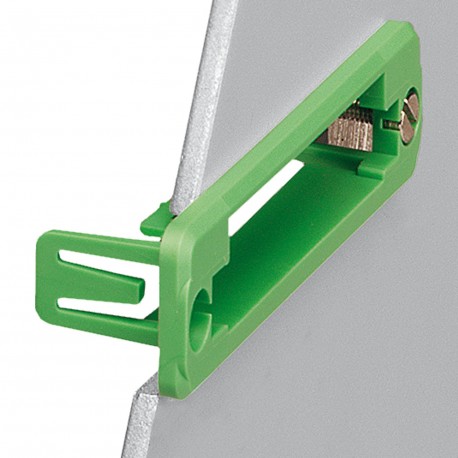

IC-DFR 3 BK
IC-DFR 3 BK 1831824 PHOENIX CONTACT Accessories
$0.00USD
4389 in stock
Key Specifications
Pitch:5.08 mm
Product line:COMBICON Connectors Special
Product type:Panel-mount frame
Number of rows:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pitch | 5.08 mm |
| Product line | COMBICON Connectors Special |
| Product type | Panel-mount frame |
| Number of rows | 1 |
| Product family | IC-DFR |
| Color (Housing) | black (9005) |
| Article revision | 00 |
| Type of packaging | packed in cardboard |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 3 |
| Number of potentials | 3 |
| Number of connections | 3 |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Product Description
Recessed frame, nominal cross-section: 2.5 mm², colour: black, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, article family: IC-DFR, pitch: 5.08 mm, packagi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
