IC 2,5 HC/ 8-GF-5,08

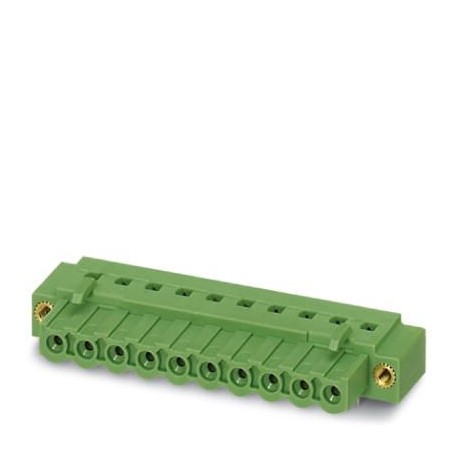

IC 2,5 HC/ 8-GF-5,08 1943483 PHOENIX CONTACT Feed-through header
$0.00USD
3173 in stock
Key Specifications
GTIN:4017918878610
Note:Made to Order (non-returnable)
Orderkey:1943483
(General):CUL
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918878610 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1943483 |
| (General) | CUL |
| Catalog page | Page 499 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Color (Dimensions) | green |
| Custom tariff number | 85366930 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 5.08 mm |
| Width (Key Commercial Data) | 50.76 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 10.2 mm |
| Length (Key Commercial Data) | 19 mm |
| Range of articles (Dimensions) | IC 2,5 HC/..-GF |
| Nominal current IN (Dimensions) | 16 A |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 8 |
| Dimension a (Key Commercial Data) | 35.56 mm |
| Maximum load current (Dimensions) | 16 A |
| Pin spacing (Key Commercial Data) | 5.08 mm |
| Rated voltage (II/2) (Dimensions) | 630 V |
| Width [ w ] (Key Commercial Data) | 50.76 mm |
| Height [ h ] (Key Commercial Data) | 13.7 mm |
| Length [ l ] (Key Commercial Data) | 19 mm |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Rated voltage (III/3) (Dimensions) | 320 V |
| Pin dimensions (Key Commercial Data) | 0.48 x 1.14 mm |
| Weight per Piece (excluding packing) | 8.080 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Insulating material group (Dimensions) | I |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 3.5 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 16 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 8,
