IB ST 24 BDO 32/2

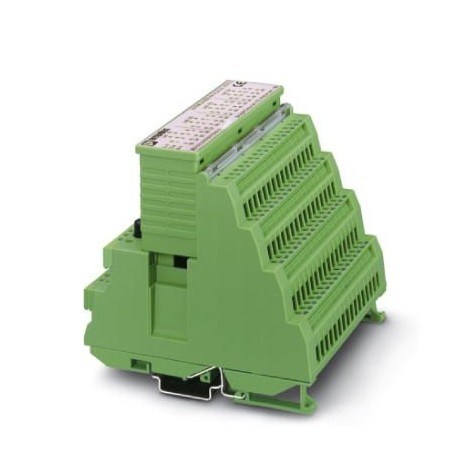

IB ST 24 BDO 32/2 2750824 PHOENIX CONTACT I/O module
$0.00USD
4877 in stock
Key Specifications
GTIN:4017918108441
Orderkey:2750824
Catalog page:Page 249 (C-8-2013)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918108441 |
| Orderkey | 2750824 |
| Catalog page | Page 249 (C-8-2013) |
| Packing unit | 1 pc |
| (Interfaces) | Current limit for 8 channels |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389091 |
| Test section (General) | Supply voltage logic / I/O 500 V AC 50 Hz 1 min. |
| Output name (Interfaces) | Digital outputs |
| Ripple (Digital outputs) | 3.6 Vppwithin the allowable voltage range |
| Depth (Key Commercial Data) | 116 mm |
| Width (Key Commercial Data) | 118 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 117 mm |
| Connection method (Interfaces) | Screw connection |
| Number of outputs (Interfaces) | 32 |
| Nominal load, lamp (Interfaces) | 4 W |
| Type of protection (Interfaces) | Short-circuit protection |
| Designation (Ambient conditions) | ST local bus |
| Nominal load, ohmic (Interfaces) | 12 W |
| Supply voltage (Digital outputs) | 24 V DC |
| Degree of protection (Dimensions) | IP20 |
| Connection technology (Interfaces) | 2-wire |
| Nominal load, inductive (Interfaces) | 12 VA |
| Weight per Piece (excluding packing) | 704.000 g |
| Air pressure (operation) (Dimensions) | 86 kPa ... 108 kPa (1500 m above sea level) |
| Current consumption (Digital outputs) | 100 mA |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | ST local bus connector |
| Supply voltage range (Digital outputs) | 20 V DC ... 30 V DC (including ripple) |
| Protection class (Electrical isolation) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Transmission speed (Ambient conditions) | 500 kbps |
| Dimensional drawing (Key Commercial Data) | |
| Ambient temperature (operation) (Dimensions) | 0 °C ... 55 °C |
| Air pressure (storage/transport) (Dimensions) | 86 kPa ... 108 kPa (1500 m above sea level) |
| Maximum output current per group (Interfaces) | 16 A |
| Permissible humidity (operation) (Dimensions) | 75 % (non-condensing) |
| Maximum output current per channel (Interfaces) | 500 mA |
| Net weight (Power supply for module electronics) | 704 g |
| Mounting type (Power supply for module electronics) | DIN rail |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Permissible humidity (storage/transport) (Dimensions) | 95 % (non-condensing) |
| Connection in acc. with standard (Electrical isolation) | CUL |
| Maximum output current per module / terminal block (Interfaces) | 16 A |
