IB ST 24 BAI 8/U

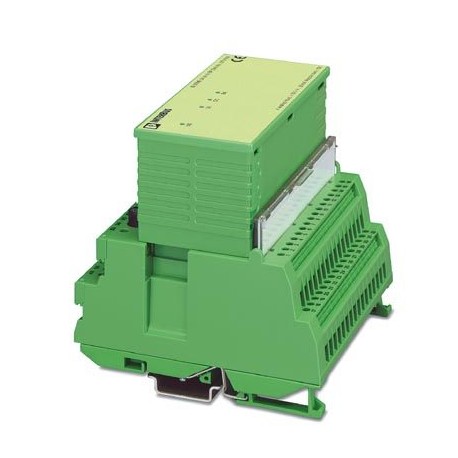

IB ST 24 BAI 8/U 2721015 PHOENIX CONTACT I/O module
$0.00USD
3361 in stock
Key Specifications
GTIN:4017918126964
Note:Made to Order (non-returnable)
Orderkey:2721015
Catalog page:Page 251 (C-8-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918126964 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2721015 |
| Catalog page | Page 251 (C-8-2013) |
| Packing unit | 1 pc |
| Width (Note) | 118 mm |
| (Interfaces) | 115 mA (from the ST local bus) |
| Height (Note) | 117 mm |
| Length (Note) | 116 mm |
| (Power supply) | I/O voltage/Ground conductor 500 V AC 50 Hz 1 min. |
| Weight (Inputs) | 600 g |
| Custom tariff number | 85389091 |
| Interface (Dimensions) | ST local bus |
| Mounting type (Inputs) | DIN rail |
| (Electrical isolation) | 0 V ... 50 V |
| I/O voltage (Interfaces) | ± 24 V DC 5 % (ripple) |
| Test section (Power supply) | Bus/Inputs 500 V AC 50 Hz 1 min. |
| Connection method (Dimensions) | ST local bus connector |
| I/O voltage range (Interfaces) | 18.5 V DC ... 30.2 V DC |
| Transmission speed (Dimensions) | 500 kbps |
| Transmission physics (Dimensions) | Copper |
| Communications power UL (Interfaces) | 9 V DC (from the ST local bus) |
| Weight per Piece (excluding packing) | 600.000 g |
| Max. current consumption (Interfaces) | 160 mA (without passive sensors) |
| No. of channels (Electrical isolation) | 8 |
| Basic error limit (Electrical isolation) | 0.19 % |
| Typical current consumption (Interfaces) | 68 mA (without passive sensors) |
| A/D conversion time (Electrical isolation) | 10 µs (per channel) |
| Connection in acc. with standard (General) | CUL |
| Measuring principle (Electrical isolation) | Successive approximation |
| Process data update (Electrical isolation) | 0.3 ms (per channel / 1.4 ms four channels, 2.8 ms all channels) |
| Voltage input signal (Electrical isolation) | 0 V ... 10 V |
| Connection technology (Electrical isolation) | 2-wire |
| Limit frequency (3 dB) (Electrical isolation) | 6 kHz |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Measured value resolution (Electrical isolation) | 8 / 12 bits (can be selected via software) |
| Voltage input quantization (Electrical isolation) | 39 mV (8 bit/2.44 mV 12 bit) |
| Measured value representation (Electrical isolation) | 8 bits straight binary |
| Note on the number of channels (Electrical isolation) | Single-ended voltage inputs |
| Max. power consumption from the local bus (Interfaces) | 135 mA (from the ST local bus) |
| Input resistance of voltage input (Electrical isolation) | > 150 kΩ |
| Measured value monitoring to the PLC (Electrical isolation) | 8 bits: 2 measured values per data word |
