IB IL SCN-6 SHIELD/N

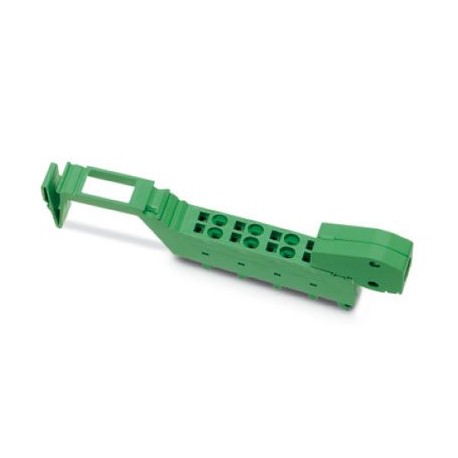

IB IL SCN-6 SHIELD/N 2740711 PHOENIX CONTACT Inline shield connector
$0.00USD
4457 in stock
Key Specifications
GTIN:4017918480028
Orderkey:2740711
Packing unit:5 pc
Country of origin:DE (Germany)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918480028 |
| Orderkey | 2740711 |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| (Connection data) | No hazardous substances above threshold values |
| Custom tariff number | 85366990 |
| Minimum order quantity | 5 pc |
| Depth (Key Commercial Data) | 41 mm |
| Width (Key Commercial Data) | 12 mm |
| China RoHS (Connection data) | Environmentally friendly use period: unlimited = EFUP-e |
| Height (Key Commercial Data) | 130.7 mm |
| Stripping length (Dimensions) | 8 mm |
| Weight per Piece (excluding packing) | 22.280 g |
| Conductor cross section AWG max. (Dimensions) | 16 |
| Conductor cross section AWG min. (Dimensions) | 28 |
| Conductor cross section solid max. (Dimensions) | 1.5 mm² |
| Conductor cross section solid min. (Dimensions) | 0.08 mm² |
| Conductor cross section flexible max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.08 mm² |
Product Description
Inline shielded connector for Inline analogue terminal blocks, labelled with the numbers: 1, 2, 11, 21, 12, 22, 13 and 23
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
