IB IL SAFE 2-ECO

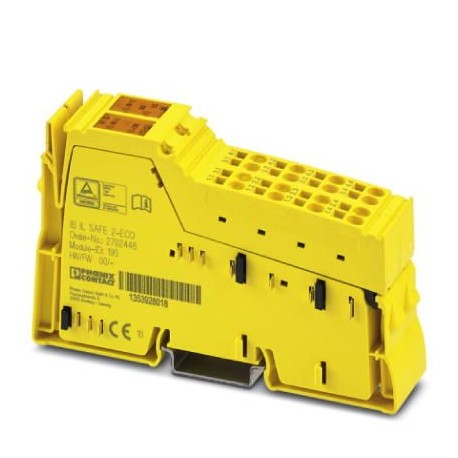

IB IL SAFE 2-ECO 2702446 PHOENIX CONTACT Safety module
$0.00USD
3675 in stock
Key Specifications
GTIN:4055626178004
Orderkey:2702446
Catalog page:Page 299 (C-6-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626178004 |
| Orderkey | 2702446 |
| Catalog page | Page 299 (C-6-2017) |
| Packing unit | 1 pc |
| (Interfaces) | Reverse polarity protection |
| Country of origin | DE (Germany) |
| (Inline potentials) | max. 6 A (30 V DC) |
| Custom tariff number | 85389099 |
| Designation (General) | Inline local bus |
| Input name (Interfaces) | Digital inputs |
| Category (Relay outputs) | 4 |
| Connection method (General) | Inline data jumper |
| Depth (Key Commercial Data) | 71.5 mm |
| Designation (Relay outputs) | EN 62061 |
| Width (Key Commercial Data) | 24.4 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 119.8 mm |
| Transmission speed (General) | 500 kbps |
| Number of inputs (Interfaces) | 4 (for 2 sensor circuits (1- or 2-channel, non-equivalent/equivalent)) |
| Connection method (Interfaces) | Spring-cage connection |
| Net weight (Ambient conditions) | 182.5 g |
| Output fuse (Inline potentials) | 6 A gL/gG (See “Application examples” section) |
| Supply voltage (Digital inputs) | 24 V DC (via voltage jumper) |
| Type of protection (Interfaces) | Surge voltage |
| Contact type (Inline potentials) | N/O contact |
| Degree of protection (Dimensions) | IP20 |
| Mounting type (Ambient conditions) | DIN rail mounting |
| Operating mode (Ambient conditions) | Process data operation with 4 bits |
| Weight per Piece (excluding packing) | 182.500 g |
| Description of the input (Interfaces) | IEC 61131-2 type 3 |
| Housing material (Ambient conditions) | PBT |
| Number of outputs (Inline potentials) | 1 (internal, two-channel enabling current path) |
| Supply voltage range (Digital inputs) | 19.2 V DC ... 30 V DC |
| Switching current (Inline potentials) | min. 3 mA |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Performance level (PL) (Relay outputs) | e (4 A DC13; 5 A AC15; 8760 switching cycles/year) |
| Switching capacity (Inline potentials) | min. 60 mW |
| Degree of pollution (Ambient conditions) | 2 (according to EN 50178) |
| Note on dimensions (Key Commercial Data) | Housing dimensions |
| Dimensional drawing (Key Commercial Data) | |
| Assembly instructions (Ambient conditions) | See derating curve |
| Input voltage range "0" signal (Interfaces) | 0 V DC ... 5 V DC (for safe Off; at inputs 1.2, 1.3, 3.2, 3.3) |
| Input voltage range "1" signal (Interfaces) | 11 V DC ... 30 V DC (at inputs 1.2, 1.3, 2.3, 3.2, 3.3, 4.3) |
| Mechanical service life (Inline potentials) | 106cycles |
| Ambient temperature (operation) (Dimensions) | 0 °C ... 55 °C (observe derating) |
| Safety Integrity Level (SIL) (Relay outputs) | 3 |
| Operating voltage display (Ambient conditions) | 1 x green LED |
| Limiting continuous current (Inline potentials) | 6 A (observe derating) |
| Designation (Power supply for module electronics) | Main circuit supply (UM) |
| Note on weight specifications (Ambient conditions) | with connector |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Supply voltage (Power supply for module electronics) | 24 V DC -20 % / +15 % |
| Status and diagnostic indicators (Ambient conditions) | 4 x green LED, 1 x yellow LED |
| Power consumption (Power supply for module electronics) | typ. 1.9 W (at UM) |
| Current consumption (Power supply for module electronics) | typ. 70 mA |
| Safety Integrity Level Claim Limit (SIL CL) (Relay outputs) | 3 |
| Air clearances and creepage distances (Safety-related characteristic data) | EN 50178 |
Product Description
Inline, Safety module, Functional safety, Digital inputs: 4 (for 2 sensor circuits (1 or 2 channels, antivalent/equivalent)), Tripping circuit: 1 (trip circuit, internal, 2 channels), Open contact, fo
