IB IL RS 232-2MBD-PAC

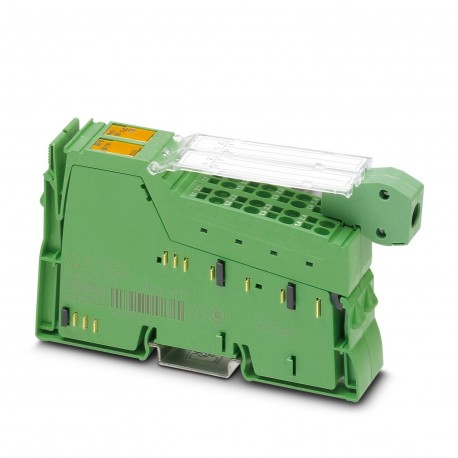

IB IL RS 232-2MBD-PAC 2862084 PHOENIX CONTACT Inline function terminal
$0.00USD
4698 in stock
Key Specifications
:typ. 165 mA
Type:modular
Depth:71.5 mm
Width:24.4 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| typ. 165 mA | |
| Type | modular |
| Depth | 71.5 mm |
| Width | 24.4 mm |
| Height | 136.8 mm |
| Data bits | 7 or 8 |
| Stop bits | 1 or 2 |
| Current draw | max. 225 mA (all connections of the serial interface are short-circuited) |
| Input buffer | 4 kByte |
| Product type | I/O component |
| ID code (hex) | DC |
| Mounting type | DIN rail mounting |
| Output buffer | 1 kByte |
| ID code (dec.) | 220 |
| Product family | Inline |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Connection name | Inline connector |
| Register length | 48 bit |
| Article revision | 05 |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Stripping length | 8 mm |
| Connection method | Inline data jumper |
| Length code (dec) | 01 |
| Length code (hex) | 01 |
| Scope of delivery | including Inline connectors and marking fields |
| Input address area | 2 Byte |
| Special properties | Communication via PCP |
| Transmission speed | 2 Mbps |
| Dimensional drawing | |
| Note on application | Only for industrial use |
| Output address area | 2 Byte |
| Degree of protection | IP20 |
| Number of interfaces | 1 |
| Process data channel | 16 bit |
| Transmission physics | Copper |
| Conductor cross section AWG | 28 ... 16 |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Note on the connection method | Use shielded cables. |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Maximum power dissipation for nominal condition | 1.7 W |
Product Description
RS-232 Inline functional terminal block, for serial data transmission, complete with accessories (connector and marking surface), 1 serial input and output channel in RS-232 execution
