In Stock Hot Product
IB IL PD GND-PAC

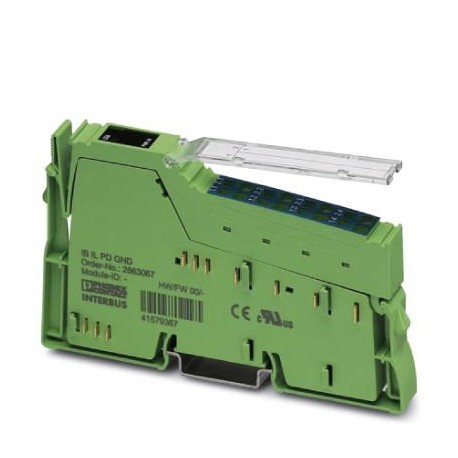

IB IL PD GND-PAC 2862990 PHOENIX CONTACT Inline terminal
$0.00USD
4811 in stock
Key Specifications
GTIN:4017918910099
Orderkey:2862990
(General):No hazardous substances above threshold values
Catalog page:Page 139 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918910099 |
| Orderkey | 2862990 |
| (General) | No hazardous substances above threshold values |
| Catalog page | Page 139 (C-6-2017) |
| Depth (Note) | 71.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 12.2 mm |
| Height (Note) | 119.8 mm |
| Country of origin | DE (Germany) |
| China RoHS (General) | Environmentally friendly use period: unlimited = EFUP-e |
| Custom tariff number | 85369010 |
| Weight (Power supply) | 44 g |
| Interface (Dimensions) | Inline local bus |
| I/O voltage (Interfaces) | GND |
| Dimensional drawing (Note) | |
| Connection method (Dimensions) | Inline data jumper |
| Weight per Piece (excluding packing) | 44.000 g |
| Max. current consumption (Interfaces) | 8 A |
| Utilization restriction (Key Commercial Data) | 1 |
Product Description
Inline module for potential distribution (GND), complete with accessories (connector and marking surface), connections for GND
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
