IB IL MP-BUS-PAC

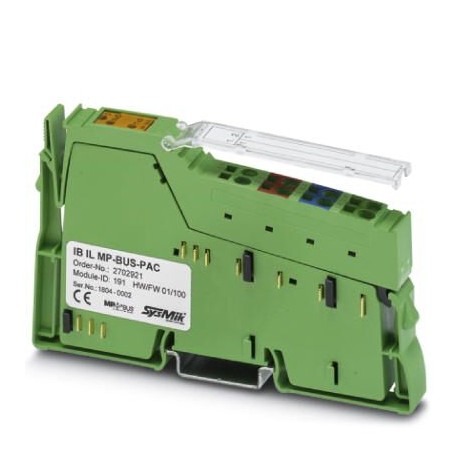

IB IL MP-BUS-PAC 2702921 PHOENIX CONTACT Inline, MP-Bus master terminal for connecting MP-Bus devices, trans..
$0.00USD
4442 in stock
Key Specifications
GTIN:4055626745749
Orderkey:2702921
(Drawings):
Depth (Note):71.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626745749 |
| Orderkey | 2702921 |
| (Drawings) | |
| Depth (Note) | 71.5 mm |
| Packing unit | 1 |
| Width (Note) | 12.2 mm |
| (Interfaces) | max. 20 mA |
| Height (Note) | 119.8 mm |
| ETIM 5.0 (eCl@ss) | EC001601 |
| ETIM 6.0 (eCl@ss) | EC001601 |
| ETIM 7.0 (eCl@ss) | EC001601 |
| Interface (General) | MP-Bus |
| (Inline potentials) | 24 V supply (UM, US) /functional earth ground 500 V AC 50 Hz 1 min. |
| Custom tariff number | 85389099 |
| Designation (General) | Inline local bus |
| Designation (Dimensions) | Inline connector |
| Designation (Interfaces) | Segment circuit supply (US) |
| No. of channels (General) | 2 |
| Note on dimensions (Note) | Housing dimensions |
| Color (Ambient conditions) | green |
| Dimensional drawing (Note) | |
| Connection method (General) | Inline connector |
| Supply voltage (Interfaces) | 24 V DC (via voltage jumper) |
| Transmission speed (General) | 500 kbps |
| eCl@ss 8.0 (Classifications) | 27242605 |
| eCl@ss 9.0 (Classifications) | 27242605 |
| Stripping length (Dimensions) | 8 mm |
| Connection method (Dimensions) | Spring-cage connection |
| Power consumption (Interfaces) | max. 675 MW |
| Net weight (Ambient conditions) | 61 g |
| Current consumption (Interfaces) | max. 8 A |
| Test section (Inline potentials) | MP-Bus/7.5 V supply (bus logic) 500 V AC 50 Hz 1 min. |
| Supply voltage range (Interfaces) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Mounting type (Ambient conditions) | DIN rail |
| Utilization restriction (Drawings) | EMC: class A product, see manufacturer's declaration in the download area |
| Degree of protection (Connection data) | IP20 |
| Note on the connection method (General) | Signal connection: 2-wire, 3-wire with supply voltage |
| Protection class (Electrical isolation) | III (IEC 61140, EN 61140, VDE 0140-1) |
| Air pressure (operation) (Connection data) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Conductor cross section AWG max. (Dimensions) | 16 |
| Conductor cross section AWG min. (Dimensions) | 28 |
| Conductor cross section solid max. (Dimensions) | 1.5 mm² |
| Conductor cross section solid min. (Dimensions) | 0.08 mm² |
| Ambient temperature (operation) (Connection data) | -25 °C ... 55 °C |
| Air pressure (storage/transport) (Connection data) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Conductor cross section flexible max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.08 mm² |
| Note on weight specifications (Ambient conditions) | with connector |
| Permissible humidity (operation) (Connection data) | 10 % ... 95 % (non-condensing) |
| Connection diagramConnection of the MP-Bus (Drawings) | |
| Ambient temperature (storage/transport) (Connection data) | -25 °C ... 85 °C |
| Connection diagramCentral power supply from US (Drawings) | |
| Permissible humidity (storage/transport) (Connection data) | 10 % ... 95 % (non-condensing) |
| Block diagramInternal wiring of the terminal points (Drawings) | |
| Connection diagramDecentralized power supply from external 24 V supplies (Drawings) |
Product Description
Inline, multipoint bus master terminal block for connecting multipoint bus equipment, local bus transmission rate: 500 kBit/s, protection rating: IP20, including inline connector and marking field
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection diagramConnection of the MP-Bus
