IB IL DI 8/S0-PAC

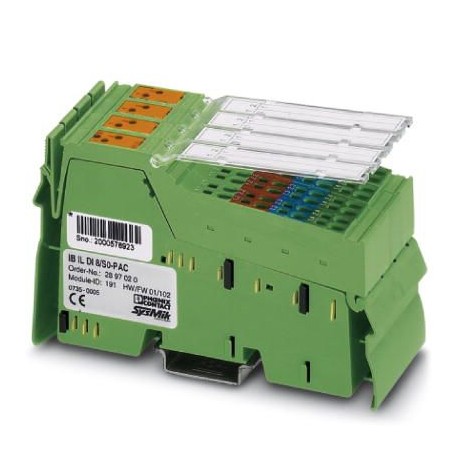

IB IL DI 8/S0-PAC 2897020 PHOENIX CONTACT Inline function terminal
$0.00USD
3559 in stock
Key Specifications
GTIN:4046356133098
Orderkey:2897020
Catalog page:Page 149 (C-6-2017)
Depth (Note):71.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356133098 |
| Orderkey | 2897020 |
| Catalog page | Page 149 (C-6-2017) |
| Depth (Note) | 71.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 48.8 mm |
| Height (Note) | 119.8 mm |
| Country of origin | DE (Germany) |
| (Inline potentials) | 7.5 V supply (bus logics) / functional earth ground 500 V AC 50 Hz 1 min. |
| Custom tariff number | 85389091 |
| Designation (General) | Inline local bus |
| Input name (Interfaces) | Digital inputs |
| Note on dimensions (Note) | Housing dimensions |
| Dimensional drawing (Note) | |
| Input voltage (Interfaces) | 24 V DC |
| Connection method (General) | Inline data jumper |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Designation (Digital inputs) | Segment circuit supply (US) |
| Transmission speed (General) | 500 kbps |
| Number of inputs (Interfaces) | 8 (S0 counter inputs) |
| Connection method (Interfaces) | Spring-cage connection |
| Net weight (Ambient conditions) | 118 g |
| Supply voltage (Digital inputs) | 24 V DC (via voltage jumper) |
| Test section (Inline potentials) | 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min. |
| Degree of protection (Dimensions) | IP20 |
| Connection technology (Interfaces) | 4-wire |
| Mounting type (Ambient conditions) | DIN rail |
| Power supply unit (Digital inputs) | max. 70 mA (without sensor supply, inputs active) |
| Operating mode (Ambient conditions) | Process data mode with two words |
| Current consumption (Digital inputs) | max. 2 A (incl. sensor supply) |
| Weight per Piece (excluding packing) | 118.000 g |
| Air pressure (operation) (Dimensions) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Description of the input (Interfaces) | IEC 62053-31 and DIN 43864 |
| Supply voltage range (Digital inputs) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Protection class (Electrical isolation) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | 1 |
| Note on weight specifications (Ambient conditions) | with connectors |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 95 % (non-condensing) |
Product Description
Inline, Digital input module, Digital inputs: 8 (S0 meter inputs), 24 VDC, connection technology: 4 conductors, transmission speed on local bus:500 kBit/s, protection rating: IP20, including inline co
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
