IB IL 24 PSDI 16-PAC

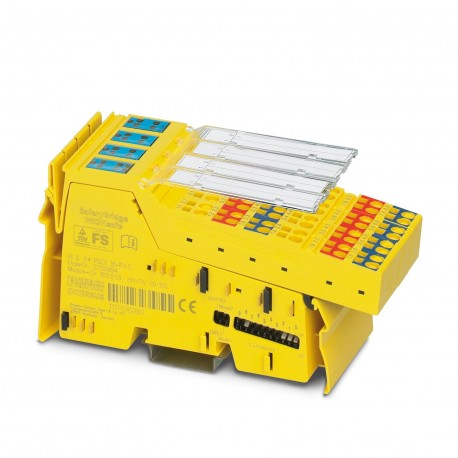

IB IL 24 PSDI 16-PAC 2700994 PHOENIX CONTACT Safety module
$0.00USD
3373 in stock
Key Specifications
:16 (for 1-channel assignment)
Type:modular
Depth:71.5 mm
Width:48.8 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 16 (for 1-channel assignment) | |
| Type | modular |
| Depth | 71.5 mm |
| Width | 48.8 mm |
| Height | 141 mm |
| pluggable | yes |
| Input name | Digital inputs |
| Application | Functional safety |
| Cable length | max. 500 m (200 m from the clock output to the safe input (total based on forward and return path)) |
| Current draw | max. 190 mA |
| Product type | I/O component |
| ID code (hex) | A3 |
| Input voltage | 24 V DC (via clock outputs UT1 and UT2 or external supply) |
| Mounting type | DIN rail mounting |
| ID code (dec.) | 163 |
| Product family | Inline |
| Supply voltage | 7.5 V DC (see safety data) |
| Connection name | Inline connector |
| No. of channels | 2 |
| Register length | 8 Byte |
| Article revision | 06 |
| Number of inputs | 8 (for 2-channel assignment) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Connection method | Inline data jumper |
| Length code (dec) | 04 |
| Length code (hex) | 04 |
| Input address area | 8 Byte ((Operating mode: SafetyBridge)) |
| Note on dimensions | Housing dimensions |
| Transmission speed | 500 kbps / 2 Mbps (can be switched) |
| Dimensional drawing | |
| Input voltage range | -3 V DC ... 30 V DC |
| Note on application | Only for industrial use |
| Output address area | 8 Byte ((Operating mode: SafetyBridge)) |
| Transmission medium | Copper |
| Degree of protection | IP20 |
| Process data channel | 8 Byte |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Connection technology | 2-, 3-conductor |
| Required parameter data | 1 Byte ((Operating mode: SafetyBridge)) |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Description of the input | IEC 61131-2 type 3 |
| Conductor cross section AWG | 24 ... 16 |
| Required configuration data | 5 Byte ((Operating mode: SafetyBridge)) |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 11 V DC ... 30 V DC |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Typical input current per channel | 2.7 mA (at 24 V) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Maximum power dissipation for nominal condition | 14.5 W |
Product Description
Safety-oriented digital input module, IP20 degree of protection, for SafetyBridge V3 systems and the PROFIsafe system. The module has 8 secure digital inputs with a two-channel occupancy or 16 secure
