IB IL 24 LPSDO 8 V3-PAC

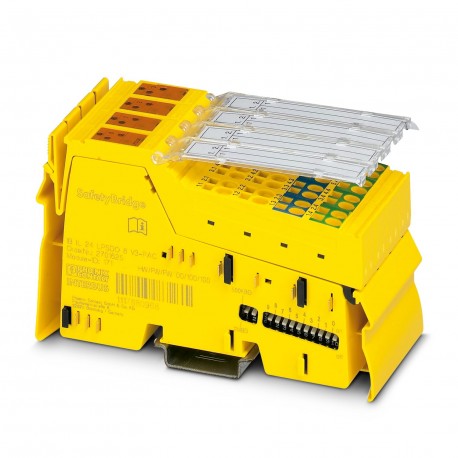

IB IL 24 LPSDO 8 V3-PAC 2701625 PHOENIX CONTACT Safety module
$0.00USD
3724 in stock
Key Specifications
GTIN:4046356770033
Orderkey:2701625
(General):max. 6.03 A
Catalog page:Page 296 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356770033 |
| Orderkey | 2701625 |
| (General) | max. 6.03 A |
| Catalog page | Page 296 (C-6-2017) |
| Depth (Note) | 71.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 48.8 mm |
| (Interfaces) | max. 4 A (Total current of all outputs, >50 °C ... 55 °C) |
| Height (Note) | 119.8 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389091 |
| Designation (General) | Segment circuit supply (US) |
| Output name (Interfaces) | Digital outputs |
| Supply voltage (General) | 24 V (see safety data) |
| Note on dimensions (Note) | Housing dimensions |
| Output current (Interfaces) | max. 6 A (Total current of all outputs, -25 °C ... 50 °C) |
| Output voltage (Interfaces) | 24 V DC (US- 1 V) |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Current consumption (General) | typ. 30 mA (all outputs set including actuator current) |
| Connection method (Interfaces) | Spring-cage connection |
| Number of outputs (Interfaces) | 4 (with two-channel assignment) |
| Supply voltage range (General) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Nominal load, lamp (Interfaces) | see safety data |
| Type of protection (Interfaces) | Overload protection, short-circuit protection of outputs |
| Designation (Ambient conditions) | Inline local bus |
| Logic memory (Inline potentials) | 60 kByte |
| Nominal load, ohmic (Interfaces) | see safety data |
| Supply voltage (Digital outputs) | 24 V DC (via voltage jumper) |
| Degree of protection (Dimensions) | IP20 |
| Category (SafetyBridge properties) | max. 4 (two channel; dependent in parameterization and wiring) |
| Connection technology (Interfaces) | 2, 3, 4-wire |
| Nominal output voltage (Interfaces) | 24 V DC |
| Nominal load, inductive (Interfaces) | see safety data |
| Weight per Piece (excluding packing) | 355.200 g |
| Air pressure (operation) (Dimensions) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Designation (SafetyBridge properties) | EN 62061 |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Ambient conditions) | Inline data jumper |
| Supply voltage range (Digital outputs) | 19.2 V DC ... 30 V DC |
| Transmission speed (Ambient conditions) | 500 kbps / 2 Mbps (can be switched) |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Air pressure (storage/transport) (Dimensions) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Connection to I/O modules (Inline potentials) | max. 16 (safe digital I/O modules) |
| Maximum output current per group (Interfaces) | 3 A |
| Permissible humidity (operation) (Dimensions) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Maximum output current per channel (Interfaces) | 2 A |
| Net weight (Power supply for module electronics) | 355.2 g |
| Performance level (PL) (SafetyBridge properties) | max. e (two channel; dependent in parameterization and wiring) |
| Mounting type (Power supply for module electronics) | DIN rail |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Protection class (Safety-related characteristic data) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Safety Integrity Level (SIL) (SafetyBridge properties) | max. 3 (two channel; dependent in parameterization and wiring) |
| Diagnostics messages (Power supply for module electronics) | Short-circuit / overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor |
| Note on weight specifications (Power supply for module electronics) | with connectors |
| Safety Integrity Level Claim Limit (SIL CL) (SafetyBridge properties) | max. 3 (two channel; dependent in parameterization and wiring) |
Product Description
Safety-oriented digital output module, IP20 degree of protection, for the SafetyBridge system. The module has 4 secure digital outputs with two-channel occupancy or 8 secure digital outputs with singl
