IB IL 24 DO 4-2MBD

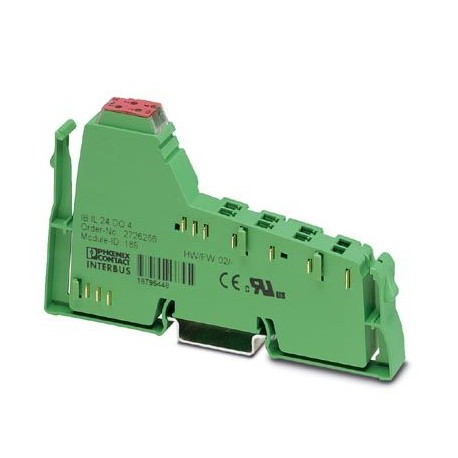

IB IL 24 DO 4-2MBD 2855211 PHOENIX CONTACT Inline terminal
$0.00USD
3313 in stock
Key Specifications
GTIN:4017918876890
Note:Made to Order (non-returnable)
Orderkey:2855211
Catalog page:Page 67 (AX-2007)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918876890 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2855211 |
| Catalog page | Page 67 (AX-2007) |
| Depth (Note) | 71.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 12.2 mm |
| Height (Note) | 119.8 mm |
| Country of origin | DE (Germany) |
| (Inline potentials) | 24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min. |
| Custom tariff number | 85389091 |
| Designation (General) | Segment circuit supply (US) |
| Output name (Interfaces) | Digital outputs |
| Supply voltage (General) | 24 V DC (via voltage jumper) |
| Note on dimensions (Note) | Housing dimensions |
| Dimensional drawing (Note) | |
| Output voltage (Interfaces) | 24 V DC (via voltage jumper) |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Net weight (Digital outputs) | 46 g |
| Current consumption (General) | max. 2 A |
| Connection method (Interfaces) | Spring-cage connection |
| Number of outputs (Interfaces) | 4 |
| Supply voltage range (General) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Mounting type (Digital outputs) | DIN rail |
| Nominal load, lamp (Interfaces) | 12 W |
| Type of protection (Interfaces) | Overload protection, short-circuit protection of outputs |
| Designation (Ambient conditions) | Inline local bus |
| Nominal load, ohmic (Interfaces) | 12 W (48 Ω) |
| Test section (Inline potentials) | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min. |
| Degree of protection (Dimensions) | IP20 |
| Connection technology (Interfaces) | 3-wire |
| Nominal output voltage (Interfaces) | 24 V DC (voltage difference at Inom≤ 1 V) |
| Nominal load, inductive (Interfaces) | 12 VA (1.2 H, 50 Ω) |
| Weight per Piece (excluding packing) | 46.000 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Ambient conditions) | Inline data jumper |
| Diagnostics messages (Digital outputs) | Short-circuit / overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module |
| Protection class (Electrical isolation) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Transmission speed (Ambient conditions) | 2 Mbps |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Maximum output current per module (Interfaces) | 1 A |
| Maximum output current per channel (Interfaces) | 500 mA |
| Note on weight specifications (Digital outputs) | without plug |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 95 % (according to DIN EN 61131-2) |
