IB IL 24 DI8/HD-XC-PAC

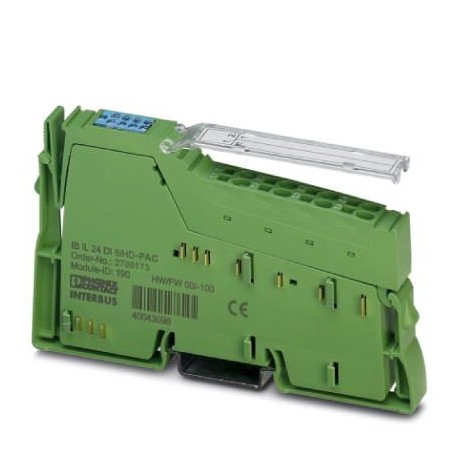

IB IL 24 DI8/HD-XC-PAC 2701212 PHOENIX CONTACT Inline terminal
$0.00USD
4172 in stock
Key Specifications
GTIN:4046356727785
Note:Made to Order (non-returnable)
Orderkey:2701212
Catalog page:Page 147 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356727785 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2701212 |
| Catalog page | Page 147 (C-6-2017) |
| Depth (Note) | 71.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 12.2 mm |
| (Dimensions) | -40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) |
| Height (Note) | 119.8 mm |
| (Digital inputs) | 24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min. |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389091 |
| Designation (General) | Inline local bus |
| Designation (Interfaces) | Segment circuit supply (US) |
| No. of channels (General) | 2 |
| Note on dimensions (Note) | Housing dimensions |
| Dimensional drawing (Note) | |
| Connection method (General) | Inline data jumper |
| Supply voltage (Interfaces) | 24 V DC (via voltage jumper) |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Transmission speed (General) | 500 kbps |
| Test section (Digital inputs) | 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min. |
| Input name (Inline potentials) | Digital inputs |
| Power consumption (Interfaces) | max. 0.72 W |
| Net weight (Ambient conditions) | 60 g |
| Current consumption (Interfaces) | max. 5.5 mA |
| Degree of protection (Dimensions) | IP20 |
| Input voltage (Inline potentials) | 24 V DC |
| Supply voltage range (Interfaces) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Mounting type (Ambient conditions) | DIN rail |
| Number of inputs (Inline potentials) | 8 |
| Weight per Piece (excluding packing) | 60.000 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Connection method (Inline potentials) | Spring-cage connection |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Protection class (Electrical isolation) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Connection technology (Inline potentials) | 1-wire |
| Typical response time (Inline potentials) | 1 ms |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C (Standard) |
| Description of the input (Inline potentials) | EN 61131-2 types 1 and 3 |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Utilization restriction (Key Commercial Data) | 1 |
| Nominal input current at UIN (Inline potentials) | typ. 2.4 mA |
| Input voltage range "0" signal (Inline potentials) | -3 V DC ... 5 V DC |
| Input voltage range "1" signal (Inline potentials) | 11 V DC ... 30 V DC |
| Note on weight specifications (Ambient conditions) | with connector |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Typical input current per channel (Inline potentials) | 2.4 mA |
| Delay at signal change from 0 to 1 (Inline potentials) | 1 ms |
| Delay at signal change from 1 to 0 (Inline potentials) | 1 ms |
Product Description
Inline, Digital input module, Digital inputs: 8, 24 VDC, connection technology: 1 conductor, Extreme Condition variant, transmission speed on the local bus:500 kBit/s, protection index: IP20, includin
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
