IAK 16

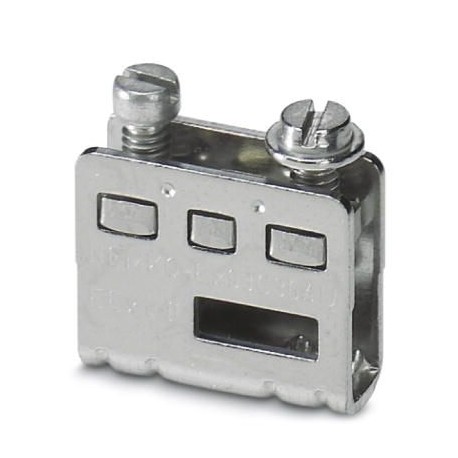

IAK 16 2715982 PHOENIX CONTACT Branch terminal
$0.00USD
4591 in stock
Key Specifications
GTIN:4017918061739
Orderkey:2715982
Catalog page:Page 254 (CL-2005)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918061739 |
| Orderkey | 2715982 |
| Catalog page | Page 254 (CL-2005) |
| Packing unit | 50 pc |
| Width (General) | 7.7 mm |
| Length (General) | 22.9 mm |
| Country of origin | PL (Poland) |
| (Connection data) | No hazardous substances above threshold values |
| Custom tariff number | 85369010 |
| Minimum order quantity | 50 pc |
| Screw thread (Dimensions) | M4 |
| Color (Key Commercial Data) | gray |
| China RoHS (Connection data) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Dimensions) | Screw connection |
| Weight per Piece (excluding packing) | 13.130 g |
| Nominal current IN (Key Commercial Data) | 57 A |
| Maximum load current (Key Commercial Data) | 76 A (with 16 mm² conductor cross section) |
| Conductor cross section AWG max. (Dimensions) | 6 |
| Conductor cross section AWG min. (Dimensions) | 20 |
| Conductor cross section solid max. (Dimensions) | 16 mm² |
| Conductor cross section solid min. (Dimensions) | 0.5 mm² |
| Conductor cross section flexible max. (Dimensions) | 10 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.5 mm² |
| 2 conductors with same cross section, solid max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.5 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
Product Description
Branch module, rated current: 57 A, connection type: Screw connection, cross-section: 0.5 mm² - 16 mm², colour: grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
