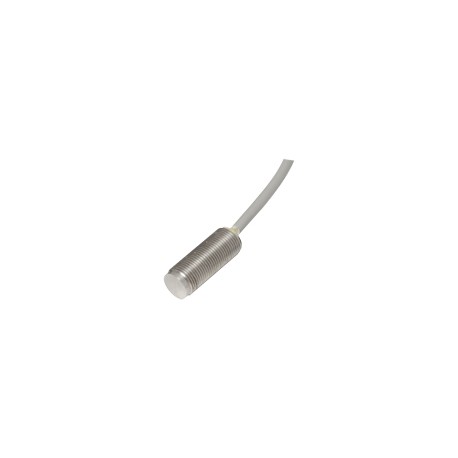

IA12FLN04NOM1

Proximity Inductive SensorsDC Metal FaceTypes IA, M8, M12, M18 and M30• Sensing distance: 1 to 15 mm• Flush and non-flush types• Long and short housing• Rated operational voltage: 10 - 30 VDC• Output: DC 100 mA, NPN or PNP• Normally open, Normally closed• Output indication: by yellow LED• Protection: reverse polarity, short circuit, transients• Cable and plug versionsProduct DescriptionOrdering KeyIA08FLF01NOM5A family of metal face induc- tive proximity switches in industrial standard stainless steel housings (M8, M12, M18 and M30 types).Output indication: by yellowLED.Outputsare opencollector NPN or PNP transistors. Available with cable and M8 or M12 plug.These sensors standuptoabrasion and impact caused byflyingmetalchips,grit and misalignedor vibrating targets.In addition, the stainless steel body resists against corrosion and chemical attack,by offering a higher level of protectionfor more reliable operation and longer life in harsh environments.TypeHousing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configurationConnection typeType Selection M8, M12 and M18HousingConnec-Housing RatedOrdering no.Ordering no.Ordering no.Ordering no. diameter tionstyle operatingNPNPNPNPNPNPdistance Sn Normally open Normally openNormally closedNormally closedM8Cable Short 1 mm 1) IA 08 FSF 01 NOIA 08 FSF 01 POIA 08 FSF 01 NCIA 08 FSF 01 PCM8Plug Short 1 mm 1) IA 08 FSF 01 NOM5 IA 08 FSF 01 POM5IA 08 FSF 01 NCM5 IA 08 FSF 01 PCM5M8Cable Long 1 mm 1) IA 08 FLF 01 NOIA 08 FLF 01 POIA 08 FLF 01 NC IA 08 FLF 01 PCM8Plug Long 1 mm 1) IA 08 FLF 01 NOM5 IA 08 FLF 01 POM5IA 08 FLF 01 NCM5 IA 08 FLF 01 PCM5M8Cable Short 2 mm 2) IA 08 FSN 02 NOIA 08 FSN 02 PO IA 08 FSN 02 NCIA 08 FSN 02 PCM8Plug Short 2 mm 2)IA 08 FSN 02 NOM5 IA 08 FSN 02 POM5IA 08 FSN 02 NCM5 IA 08 FSN 02 PCM5M8Cable Long 2 mm 2) IA 08 FLN 02 NOIA 08 FLN 02 PO IA 08 FLN 02 NCIA 08 FLN 02 PCM8Plug Long 2 mm 2)IA 08 FLN 02 NOM5 IA 08 FLN 02 POM5IA 08 FLN 02 NCM5 IA 08 FLN 02 PCM5M12Cable Short 2 mm 1) IA 12 FSF 02 NOIA 12 FSF 02 POIA 12 FSF 02 NCIA 12 FSF 02 PCM12Plug Short 2 mm 1) IA 12 FSF 02 NOM1 IA 12 FSF 02 POM1IA 12 FSF 02 NCM1 IA 12 FSF 02 PCM1M12Cable Long 2 mm 1) IA 12 FLF 02 NOIA 12 FLF 02 POIA 12 FLF 02 NC IA 12 FLF 02 PCM12Plug Long 2 mm 1) IA 12 FLF 02 NOM1 IA 12 FLF 02 POM1IA 12 FLF 02 NCM1 IA 12 FLF 02 PCM1M12Cable Short 4 mm 2) IA 12 FSN 04 NOIA 12 FSN 04 PO IA 12 FSN 04 NCIA 12 FSN 04 PCM12Plug Short 4 mm 2)IA 12 FSN 04 NOM1 IA 12 FSN 04 POM1IA 12 FSN 04 NCM1 IA 12 FSN 04 PCM1M12Cable Long 4 mm 2) IA 12 FLN 04 NOIA 12 FLN 04 PO IA 12 FLN 04 NCIA 12 FLN 04 PCM12Plug Long 4 mm 2)IA 12 FLN 04 NOM1 IA 12 FLN 04 POM1IA 12 FLN 04 NCM1 IA 12 FLN 04 PCM1M18Cable Short 5 mm 1) IA 18 FSF 05 NOIA 18 FSF 05 POIA 18 FSF 05 NCIA 18 FSF 05 PCM18Plug Short 5 mm 1) IA 18 FSF 05 NOM1 IA 18 FSF 05 POM1IA 18 FSF 05 NCM1 IA 18 FSF 05 PCM1M18Cable Long 5 mm 1) IA 18 FLF 05 NOIA 18 FLF 05 POIA 18 FLF 05 NC IA 18 FLF 05 PCM18Plug Long 5 mm 1) IA 18 FLF 05 NOM1 IA 18 FLF 05 POM1IA 18 FLF 05 NCM1 IA 18 FLF 05 PCM1M18Cable Short 8 mm 2) IA 18 FSN 08 NOIA 18 FSN 08 PO IA 18 FSN 08 NCIA 18 FSN 08 PCM18Plug Short 8 mm 2)IA 18 FSN 08 NOM1 IA 18 FSN 08 POM1IA 18 FSN 08 NCM1 IA 18 FSN 08 PCM1M18Cable Long 8 mm 2) IA 18 FLN 08 NOIA 18 FLN 08 PO IA 18 FLN 08 NCIA 18 FLN 08 PCM18Plug Long 8 mm 2)IA 18 FLN 08 NOM1 IA 18 FLN 08 POM1IA 18 FLN 08 NCM1 IA 18 FLN 08 PCM11) For flush mounting in metal2) For non-flush mounting in metalSpecifications are subject to change without notice (09.11.12) 1
