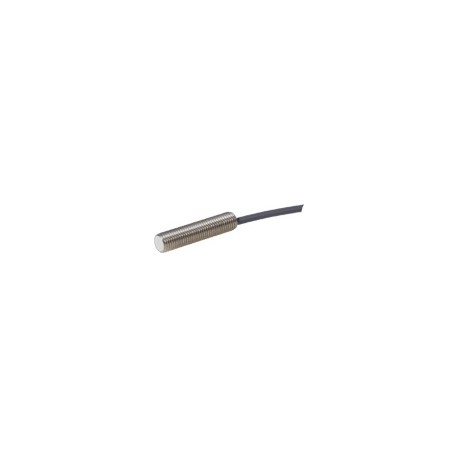

IA08BSF20PC

Proximity Inductive SensorsExtended range, Stainless Steel HousingTypes IA, M8• Sensing distance: 2 to 4 mm• Flush and non-flush types• Short body• Rated operational voltage: 10 - 30 VDC• Output: DC 200 mA, NPN or PNP, normally open or normally closed• LED-indication• Protection: reverse polarity, short-circuit, transients• Cable and plug versionsProduct DescriptionOrdering KeyIA08BSF20NOM5A family of extendedrange inductive proximity switches in industrial stainless steel housings.They are able to handle applica tions where high sensing range is requested.Type SelectionOutputsare opencollector NPN or PNP transistors. Available with cable and M8 plug.TypeHousing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configurationConnection typeRated Conn.Ordering no.Ordering no. Ordering no.Ordering no. operating typeTransistor NPNTransistor NPN Transistor PNPTransistor PNP dist. (Sn) Normally open Normally closed Normally open Normally closed2 mm 1)CableIA 08 BSF 20 NOIA 08 BSF 20 NC IA 08 BSF 20 POIA 08 BSF 20 PC2 mm 1)Plug IA 08 BSF 20 NO M5 IA 08 BSF 20 NC M5 IA 08 BSF 20 PO M5IA 08 BSF 20 PC M54 mm 2)CableIA 08 BSN 40 NO IA 08 BSN 40 NCIA 08 BSN 40 POIA 08 BSN 40 PC4 mm 2)Plug IA 08 BSN 40 NO M5 IA 08 BSN 40 NC M5IA 08 BSN 40 PO M5IA 08 BSN 40 PC M51) For flush mounting in metal 2) For non-flush mounting in metalSpecificationsRated operational voltage (UB)10 to 30 VDC (ripple incl.)Ripple ≤ 10%Output current (Ie)≤ 200 mA Derating:From +50°C to +70°C, Ic @ 70°C≤ 150 mANo load supply current (Io) ≤ 10 mAVoltage drop (Ud) Max. 2.5 VDC @ 200 mAProtectionReverse polarity,short-circuit, transientsTransient voltage1 kV/0.5 J Power ON delay (tv)< 100 ms Operating frequency (f)IA08 BSF ≥ 2000 HzIA08 BSN ≥ 1000 HzIndication for output ONLED, yellowAssured operating dist. (Sa)0 ≤ Sa ≤ 0.81 x SnEffective operating dist. (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating distance (Su) 0.85 x Sr ≤ Su ≤ 1.15 x SrRepeat accuracy (R) ≤ 5%Differential travel (H)(Hysteresis) 1 to 20% of sensing dist.Ambient temperatureOperating-25° to +70°C (-13° to +158°F) Storage -30° to +80°C (-22° to +176°F)Housing materialBody Stainless steel (AISI 304/303) Front Grey thermoplastic polyester BackpartPlugNPB NutsNPBConnectionCable2 m, 3 x 0.14 mm2, Ø 3,2 grey PVC,oil proofPlugM8 x 1Cables for plug (M5) CONH5A seriesDegree of protectionIP 67Specifications are subject to change without notice (22.01.14) 1
