IA08BLF15PC

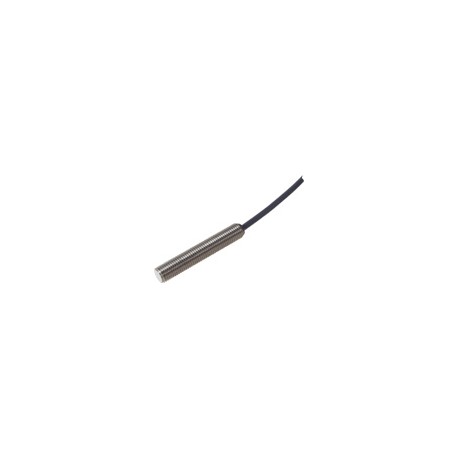

Proximity Sensors Inductive Long Body, Stainless Steel Types IA, M8• Miniature stainless steel housing(cable or M8/M12 plug)• Long body• Sensing distance: 1,5 mm or 2,5 mm• Power supply: 10 to 30 VDC• Output: Transistor NPN/PNP, make or break switching• Protection: Short-circuit• LED-indication for output ON• 2 m PVC cable, M8 or M12 plugProduct DescriptionOrdering KeyIA 08BLF 15NO M5Inductive proximity sensor with long body. Output con- figuration for NPN/PNP with bothNO andNC typesasstandard. M8 stainless steel housing with 2 m PVC cable or M8/M12 plug.Type: Ind. prox. switchHousing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configurationConnectionType SelectionRated Conn. Ordering no. Ordering no.Ordering no. Ordering no. operating typeTransistor NPN Transistor NPNTransistor PNP Transistor PNP dist. (Sn) Normally open Normally closedNormally openNormally closed1.5 mm 1)CableIA 08 BLF 15 NO IA 08 BLF 15 NCIA 08 BLF 15 PO IA 08 BLF 15 PC1.5 mm 1)Plug M8IA 08 BLF 15 NO M5 IA 08 BLF 15 NC M5IA 08 BLF 15 PO M5 IA 08 BLF 15 PC M52.5 mm CableIA 08 BLN 25 NOIA 08 BLN 25 NC IA 08 BLN 25 PO IA 08 BLN 25 PC2.5 mm Plug M8IA 08 BLN 25 NO M5IA 08 BLN 25 NC M5 IA 08 BLN 25 PO M5 IA 08 BLN 25 PC M51.5 mm 1)Plug M12IA 08 BLF 15 NO M1 IA 08 BLF 15 NC M1IA 08 BLF 15 PO M1 IA 08 BLF 15 PC M12.5 mm Plug M12IA 08 BLN 25 NO M1IA 08 BLN 25 NC M1 IA 08 BLN 25 PO M1 IA 08 BLN 25 PC M11) For flush mounting in metalSpecificationsRated operational volt. (UB) 10 to 30 VDC (ripple included)Ripple ≤ 10%Rated operational current (Ie)Continuous≤ 200 mA @ + 25°C (+75°F)No-load supply current (Io) ≤ 10 mA (ON)Voltage drop (Ud) < 2,5 V (@ Imax) Protection Short circuit Frequency of operatingcycles (f)2000 HzIndication for output ONLED, yellowRepeat Accuracy ≤ 5%Effective operating dist. (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating dist. (Su) 0.85 x Sr ≤ Su ≤ 1.15 x SrAmbient temperatureOperating -25° to +70°C (-13° to +158°F) Storage-30° to +75°C (-22° to +167°F)Degree of protectionIP 67 (Nema 1, 3, 4, 6, 13)Housing materialStainless steel, AISI 303CE-markingYesConnectionIA08BL. .0 ../..M5 Cable, 2 m, PVC, AWG 26, oil proofPlug M8, CONH5A-xxx serieIA08BL. .0 ..M1Plug M12, CONH1A-xxx serieWeight (cables/nuts included) AI...36 gAI...M1/M511 gSpecifications are subject to change without notice (26.08.10) 1
