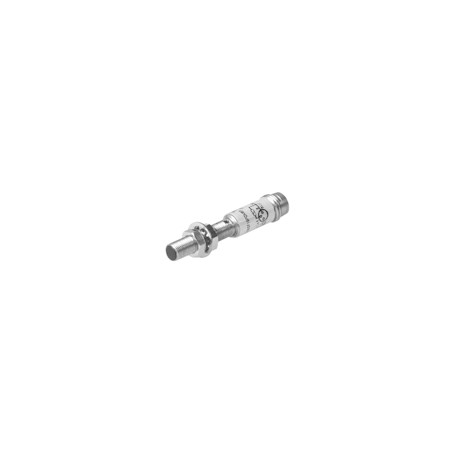

IA05BSF10PCM5P

Proximity Sensors InductiveShort body, Stainless Steel HousingTypes IA, M5 w/short-circuit protection• Miniature stainless steel housing M5• Short body• Sensing distance: 1.0 mm (0.8 mm for IA05BSF10NCPonly)• Power supply: 10 to 30 VDC• Output: Transistor NPN/PNP, normally open or normally closed• Protection: Reverse polarity and short-circuit protection• LED-indication for output ON• 2 m PVC cable or M8 plugProduct DescriptionOrdering KeyIA 05 BSF 10 NO M5 PMiniature inductive proximity sensor with reduced body length. Outputconfiguration for NPN/PNP with bothNOand NC typesas standard. M5 stainless steel housing. Connection with 2 m PVC cable or M8 plug.Ind. prox. switch Housing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configuration Connection ProtectedType SelectionRated Conn.Ordering no.Ordering no. Ordering no.Ordering no. operating typeTransistor NPNTransistor NPN Transistor PNPTransistor PNP dist. (Sn) Normally open Normally closed Normally open Normally closed0.8 mm 1)CableIA 05 BSF 10 NC P1.0 mm 1)CableIA 05 BSF 10 NO P IA 05 BSF 10 PO P IA 05 BSF 10 PC P1.0 mm 1)Plug IA 05 BSF 10 NO M5 PIA 05 BSF 10 NC M5 P IA 05 BSF 10 PO M5 PIA 05 BSF 10 PC M5 P1) For flush mounting in metalSpecificationsRated operational volt. (UB) 10 to 30 VDC (ripple included)Ripple ≤ 10%Rated operational current (Ie)Continuous≤ 200 mANo-load supply current (Io) ≤ 10 mA (ON) Voltage drop (Ud) < 1.0 V (@ Imax) Protection Reverse polarity andshort-circuit protectionAmbient temperatureOperating-25° to +70°C (-13° to +158°F) Storage -30° to +75°C (-22° to +167°F)Degree of protectionIP 67 (Nema 1, 3, 4, 6, 13)Housing materialStainless steel, AISI 303CE-markingYesConnectionCable2 m, PVC, oil proofFrequency of operatingcycles (f)2000 HzIndication for output ONLED, yellowEffective operating dist. (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating dist. (Su) 0.85 x Sr ≤ Su ≤ 1.15 x SrAWG 26/ 3 x 0.15 mm2Plug M8, CONH5A-xxx SerieSpecifications are subject to change without notice (06.06.13) 1
