HTP10 1000

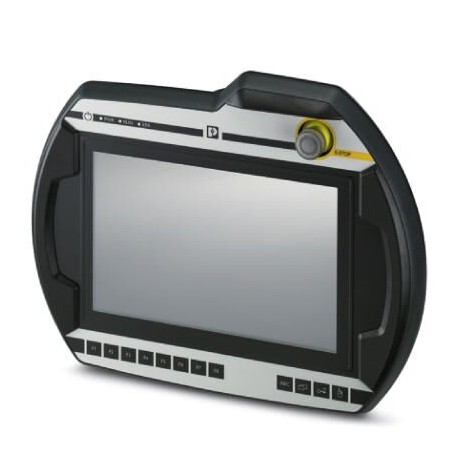

HTP10 1000 1047318 PHOENIX CONTACT Mobile panel with 25.7 cm / 10.1" TFT-display (analog resistive (polyeste..
$0.00USD
3841 in stock
Key Specifications
GTIN:4055626644363
Orderkey:1047318
Catalog page:Page 487 (C-6-2019)
Packing unit:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626644363 |
| Orderkey | 1047318 |
| Catalog page | Page 487 (C-6-2019) |
| Packing unit | 1 |
| RAM (Display) | 4 GB DDR3 |
| Shock (General) | 15g, 11 ms, in accordance with EN 61131-2 |
| Slots (Display) | 1x SD |
| (Computer data) | 1x Emergency stop (illuminated; 2-circuit wiring) |
| ETIM 3.0 (eCl@ss) | EC001412 |
| ETIM 4.0 (eCl@ss) | EC001427 |
| ETIM 5.0 (eCl@ss) | EC001427 |
| ETIM 6.0 (eCl@ss) | EC001427 |
| ETIM 7.0 (eCl@ss) | EC001427 |
| Network (Display) | 1 x Ethernet (10/100 Mbps), RJ45 |
| Processor (Display) | Intel®Atom™E3815 1.46 GHz |
| Custom tariff number | 84713000 |
| Display (Dimensions) | 25.7 cm / 10.1" TFT |
| Interfaces (Display) | 1x USB 2.0 |
| Shock (Device supply) | 15g, 11 ms, in accordance with EN 61131-2 |
| Extras (Computer data) | Cover cap for USB interface |
| LABS freedom (General) | LABS zone III (in accordance with VDMA 24364:2018-05) |
| Mass storage (Display) | Flash SSD, 32 GB |
| Weight (Computer data) | 1850 g |
| User software (Display) | Portico |
| Backlighting (Dimensions) | LED |
| Operating system (Display) | Windows®10 IoT Enterprise LTSB 2016 (64-bit), Multi-language |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| LABS freedom (Device supply) | LABS zone III (in accordance with VDMA 24364:2018-05) |
| eCl@ss 5.1 (Classifications) | 27242303 |
| eCl@ss 6.0 (Classifications) | 27242303 |
| eCl@ss 8.0 (Classifications) | 27242303 |
| eCl@ss 9.0 (Classifications) | 27330202 |
| Mounting type (Computer data) | none |
| Touch technology (Dimensions) | analog resistive (polyester) |
| Degree of protection (General) | IP65 |
| Screen resolution (Dimensions) | 1280 x 800 Pixel(s) (WXGA) |
| Vibration (operation) (General) | 1g, Criterion 1, according to IEC 60068-2-6 |
| Operating buttons (Computer data) | 4x System keys (Software keyboard, switch task Alt+Tab, right mouse button, user-specific function) |
| Vibration (operation) (Device supply) | 1g, Criterion 1, according to IEC 60068-2-6 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 10; |
| Power supply unit (Ambient conditions) | 24 V DC ±20 % |
| REACh SVHC (Standards and Regulations) | |
| Ambient temperature (operation) (General) | 0 °C ... 45 °C |
| Supply voltage range (Ambient conditions) | 19.2 V DC ... 30 V DC (according to EN 61131-2) |
| Permissible humidity (operation) (General) | 5 % ... 95 % (non-condensing) |
| Outer dimensions: width, height, depth (Note) | 353 mm x 274 mm x 110 mm (with handle and emergency stop) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Ambient temperature (storage/transport) (General) | -25 °C ... 70 °C |
Product Description
25.7 cm/10.1"-TFT-display (analog-resistive (polyester)), 1280 x 800 pixel(s) (WXGA), Intel®Atom™E3815 1.46 GHz, 1x USB 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Windows®10 IoT Enterprise LTSB 2016 (64
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
