HTI+TELEU24

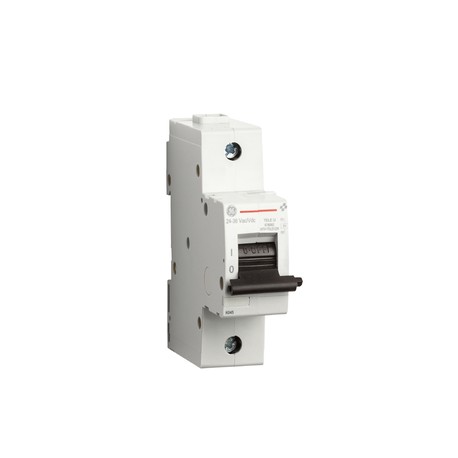

HTI TELEU24 678092 GENERAL ELECTRIC Undervoltage release 24-36 VAC/DC
$0.00USD
3756 in stock
Key Specifications
Poles:1P
Range:Undervoltage release / AC/DC 24V
Series:Undervoltage release - Tele U
Category:Add-on devices and accessories
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Poles | 1P |
| Range | Undervoltage release / AC/DC 24V |
| Series | Undervoltage release - Tele U |
| Category | Add-on devices and accessories |
| ETIM 6.0 | EC002498 |
| Function | Auxiliary |
| Approvals | CE |
| Standards | IEC 60947-2 |
| Number of modules | 1 |
| Minimum voltage (V) | 24 |
| Terminal capacity (mm²) | 3.5 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
* Features: The Hti+ Tele U undervoltage release can be used as an emergency-stop cut-as by use of suitable emergency stop buttons. The undervoltage release switches the power supply to the high performance MCB off in case of a failure or if the value falls below 0.7 x Un. After tripping, the high performance MCB can be switched back on as soon as the voltage is over 0.85 x Un.Mounting ability of the Hti+Tele U undervoltage release− The Hti+ Tele U can be mounted by the user at the left side of the high performance MCB Hti+.
