HTI+H

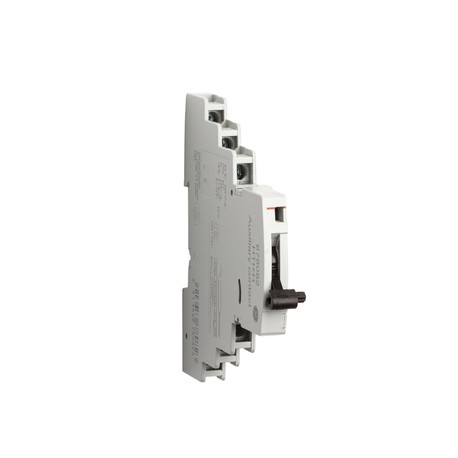

HTI H 678082 GENERAL ELECTRIC Auxiliary contact
$0.00USD
3507 in stock
Key Specifications
Poles:1P
Range:Auxiliary - Series Hti+
Series:Auxiliaries for automatic switches
Category:Add-on devices and accessories
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Poles | 1P |
| Range | Auxiliary - Series Hti+ |
| Series | Auxiliaries for automatic switches |
| Category | Add-on devices and accessories |
| ETIM 6.0 | EC002498 |
| Function | Auxiliary |
| Approvals | CE |
| Standards | IEC 60947-5-1 |
| Number of modules | 0.50 |
| Contact combination | 2CO |
| Minimum voltage (V) | 24 |
| Electrical service life | 6000 switching cycles |
| Terminal capacity (mm²) | 3.5 |
| Minimum operating voltage Ubmin (V) | 24 |
Product Description
HTI+H
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
* Features: Auxiliary contact for external display.The HTI+H auxiliary contact is for electrical display of the operating state of the high performance Hti+. Both changeover contacts always switch simultaneously with the live conductor contact and detect the following operating states:− Manual tripping− Tripping due to thermal overload− Tripping due to magnetic overload (short-circuit)Mode of function of the test buttonMode of function of the two changeover contacts− Off position of the high performance MCB contacts 11–12 and 21–22 closed− On position of the high performance MCB contacts 11–14 and 21–24 closedMounting ability of the auxiliary contact− Two Hti+H aux. contacts can be mounted by the user at the left on the Hti+ MCB.
