HT4630SS

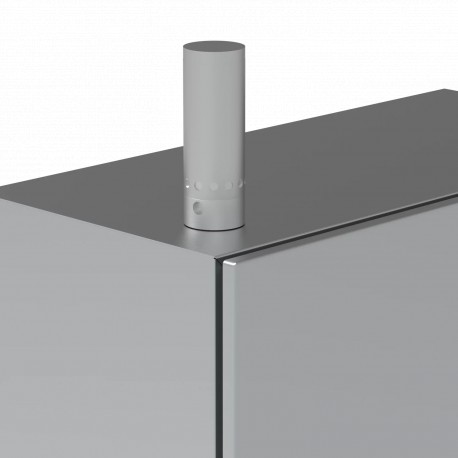

HT4630SS ELDON Vortex cooler 586W, 184 HT4630SS
$0.00USD
4010 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):64.00 mm
Model (EF000010):Air/air
Width (EF000008):64.00 mm
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 64.00 mm |
| Model (EF000010) | Air/air |
| Width (EF000008) | 64.00 mm |
| Height (EF000040) | 184.00 mm |
| Benefit: (Features) | The maintenance free cooling solution prevents unnecessary downtime. This reliable solution reduces the customer's labour cost due to the ease of installation. The vortex cooler will be a good thermal management solution for high temperature environments such as a steel mill. |
| Comment: (Features) | It is recommended to install a thermostat, BPT, as well as an air distribution kit, BPA. |
| Feature: (Features) | High temperature vortex cooler, with no moving parts and a high IP 66 protection degree |
| Advantage: (Features) | The vortex cooler provides a maintenance free cooling solution which also reduces the relative humidity within the enclosure. The vortex cooler can be installed on the enclosure easily, in environments of up to 93ºC, reducing the required installation time. |
| Voltage type (EF000187) | |
| Material: (Technical data) | Internal vortex tube manufactured in stainless steel. External cover, BP TYPE 12 in plastic and aluminium, BP TYPE 4 in aluminium, and TYPE 4X in stainless steel. |
| Speed-regulated (EF011921) | |
| Protection: (Technical data) | Depending on type, up to IP 66 TYPE 4X. |
| Description: (Technical data) | Compact and reliable way to cool enclosures. It produces cold air from compressed air, with no moving parts. The easy mounting, through a standard electrical knockout, makes this solution especially suitable to be installed, even when the enclosures are already in the field. For a continuous Vortex operating, relative humidity inside the enclosure is maintained at aproximately 45%, no moisture condenses inside the enclosure (the enclosure must be sealed). Suitable even for ambient temperatures up to 93 °C, the internal components can withstand these high temperatures, and includes a silencer to minimize the noise. The coolers must be installed vertically to maintain the protection degree. |
| Operating voltage DC (EF008208) | None V |
| Pack quantity: (Technical data) | Vortex cooler with mounting accessories. |
| Cooling air flow rate (EF024959) | None m³/h |
| Function master/slave (EF007183) | true |
| With heating function (EF000479) | |
| With temperature control (EF000745) | false |
| Operating voltage AC 50 Hz (EF008206) | None V |
| Operating voltage AC 60 Hz (EF008207) | None V |
| Ambient temperature during operating (EF007515) | None °C |
| Total cooling capacity according to EN 14511 at 35/35 °C (EF011920) | None W |
Product Description
Refr. Vortex, 586 W, 184, flow rate 850 l/min, stainless steel grade 304, IP66
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description:
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
